Macintosh Portable

Archive No. 185

Macintosh Portable

Backlight upgrade

Circa 1989Very RareFully Operational

Historical Context

Apple's first laptop — a machine so far ahead of its time and so far behind what the market wanted that it became a legend in its own lifetime. At 16 pounds and $6,500, it was neither portable nor affordable. But it had a genuine active-matrix display, a trackball, and full Mac capability. Apple engineers learned exactly what not to do, and redirected that knowledge into the PowerBook 100 two years later.

Specifications

Technical Blueprint

Ref: M5120

Processor

Motorola 68000 16MHz

Memory

7MB

Storage

BlueSCSI v2 with Wifi

Graphics

9.8" monochrome

Operating System

Mac OS 7.1.1

Hardware Notes

PRAM battery removed · Wi-Fi enabled

Gallery

Detailed Observations

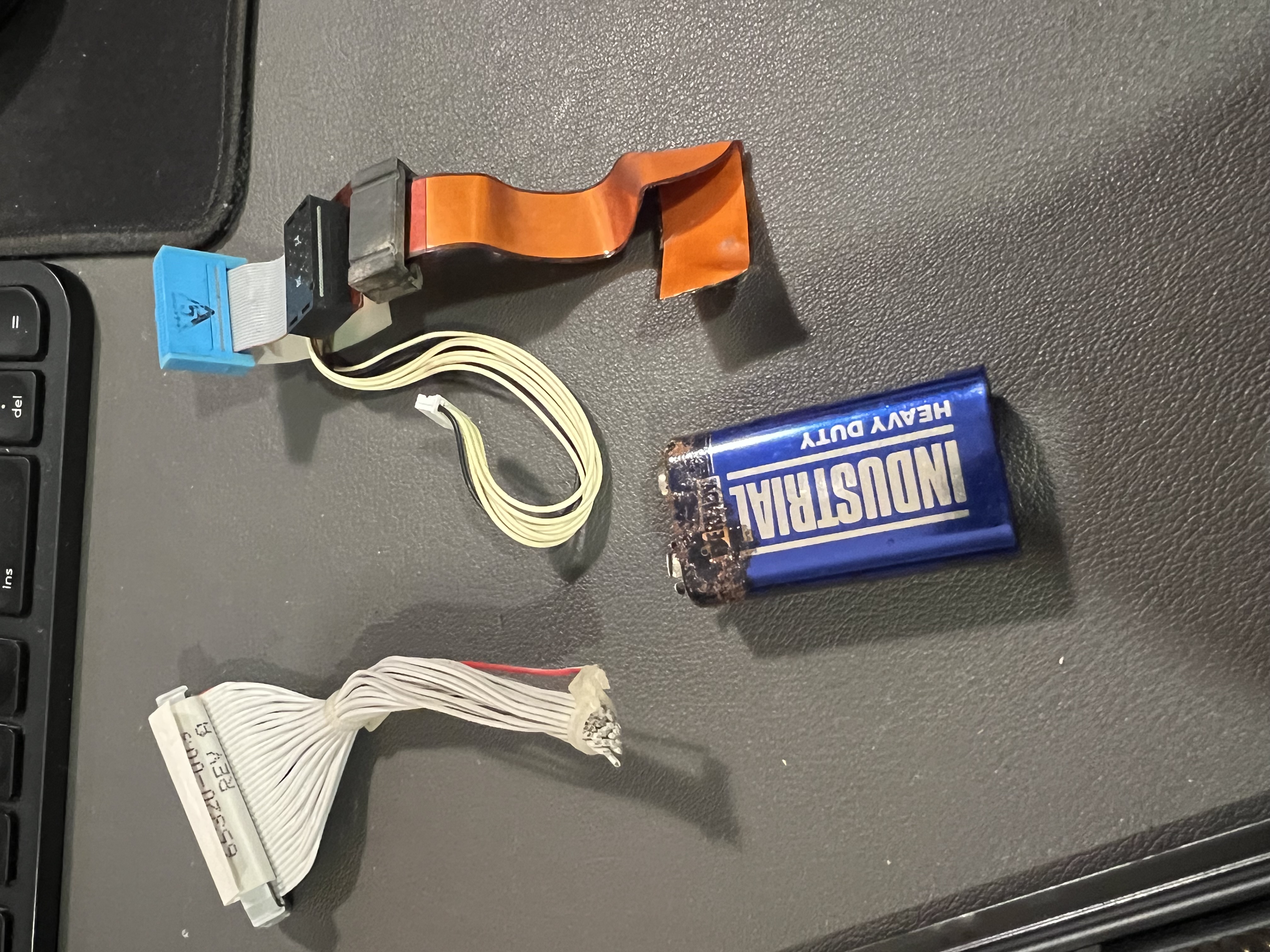

Display and HD cables cut

Display and HD cables cut

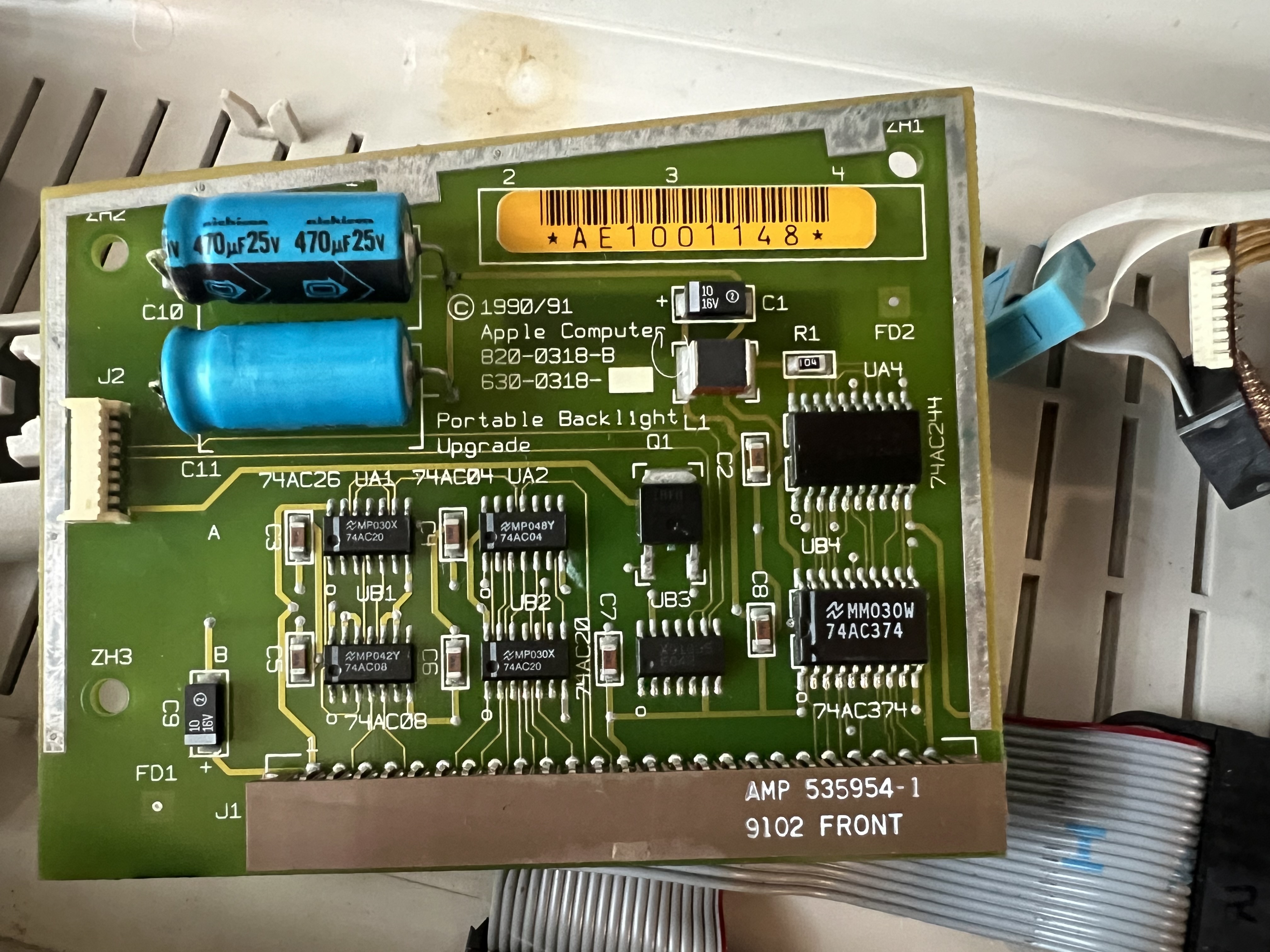

Backlight upgrade card

Backlight upgrade card

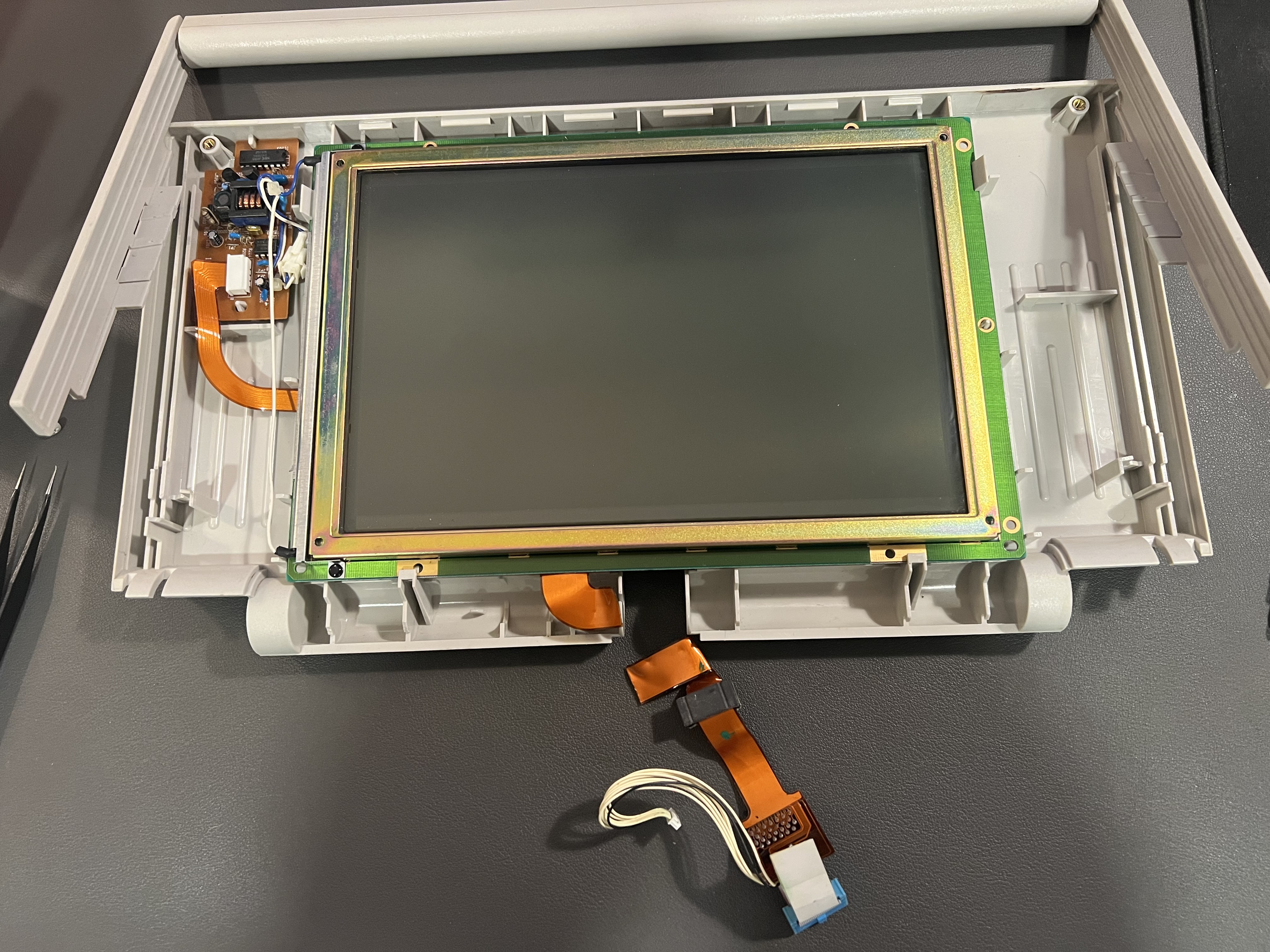

Display assembly

Display assembly

Macintosh Portable

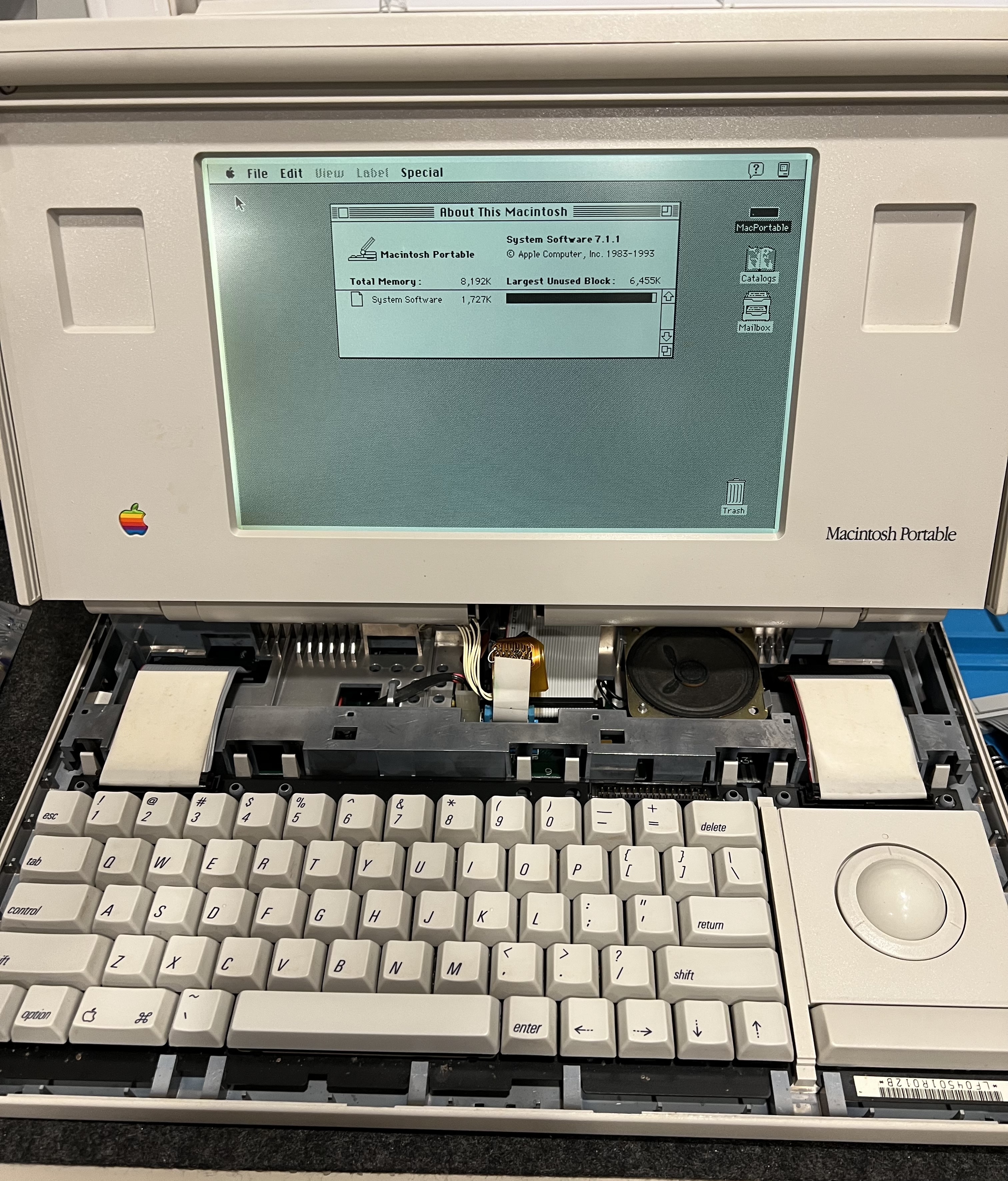

Working!!

Working!!

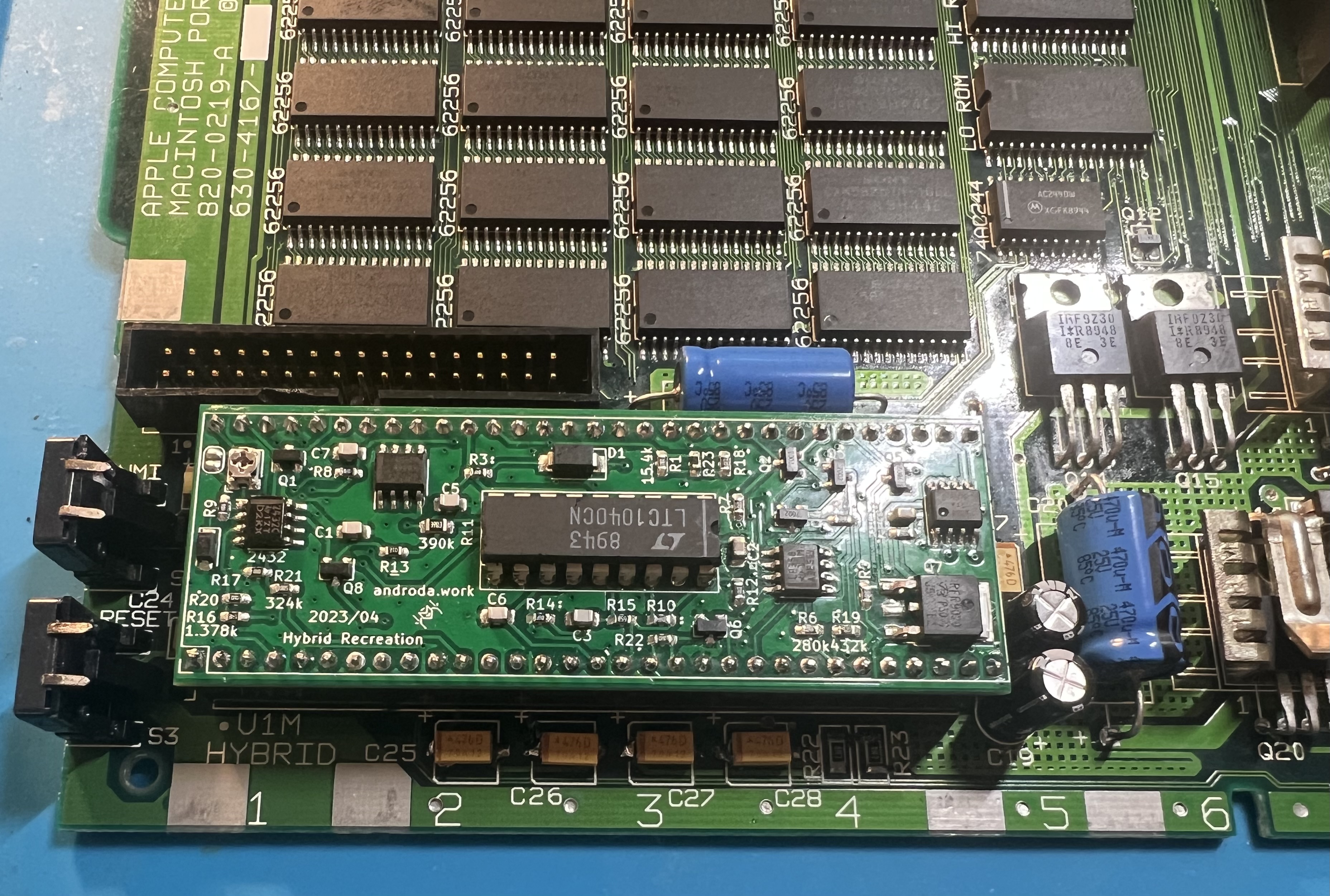

Replacement hybrid, in socket

Replacement hybrid, in socket

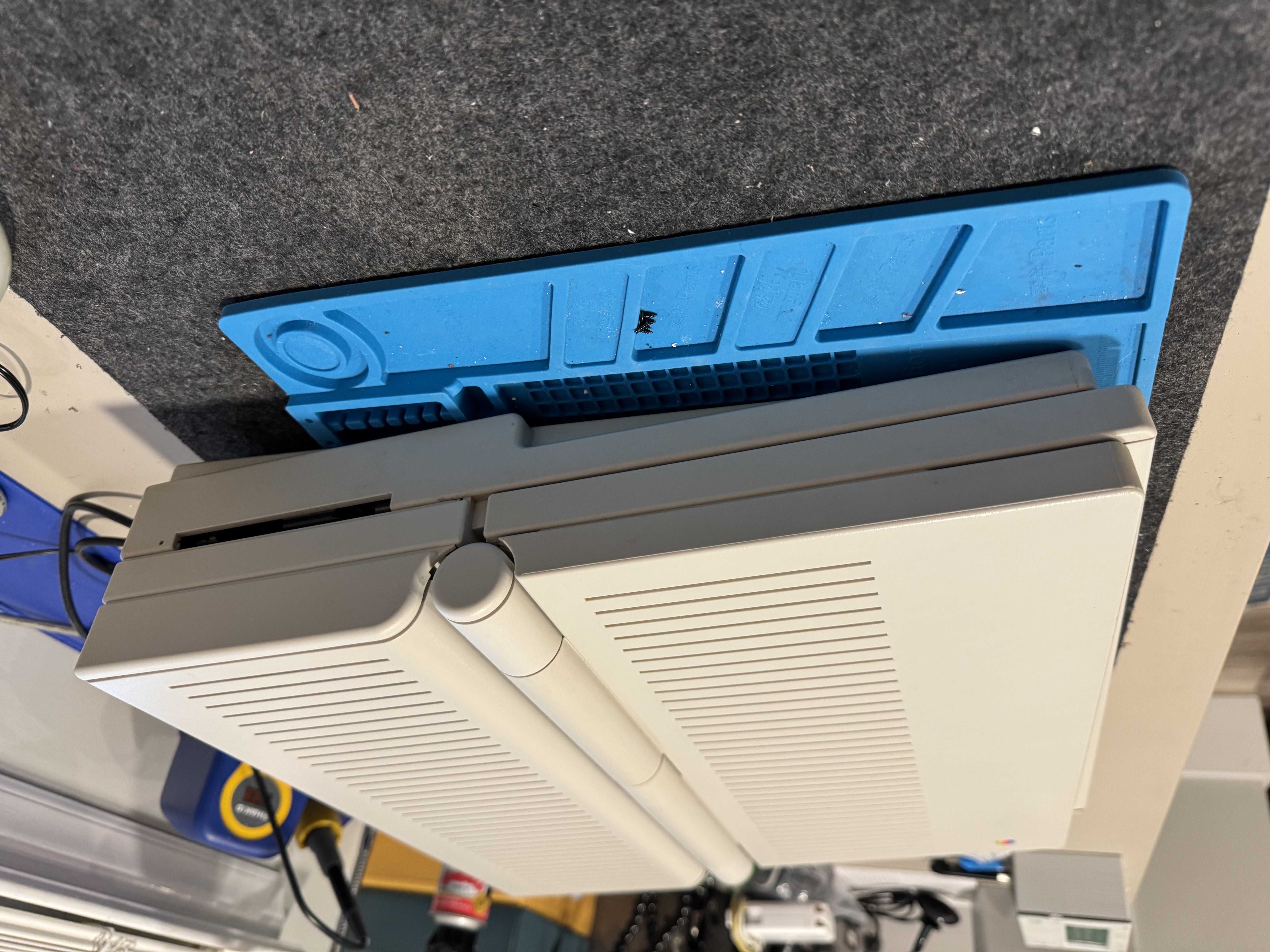

Complete with new side plate

Complete with new side plate

Macintosh Portable
Macintosh Portable
Macintosh Portable
Macintosh Portable
Macintosh Portable
Macintosh Portable

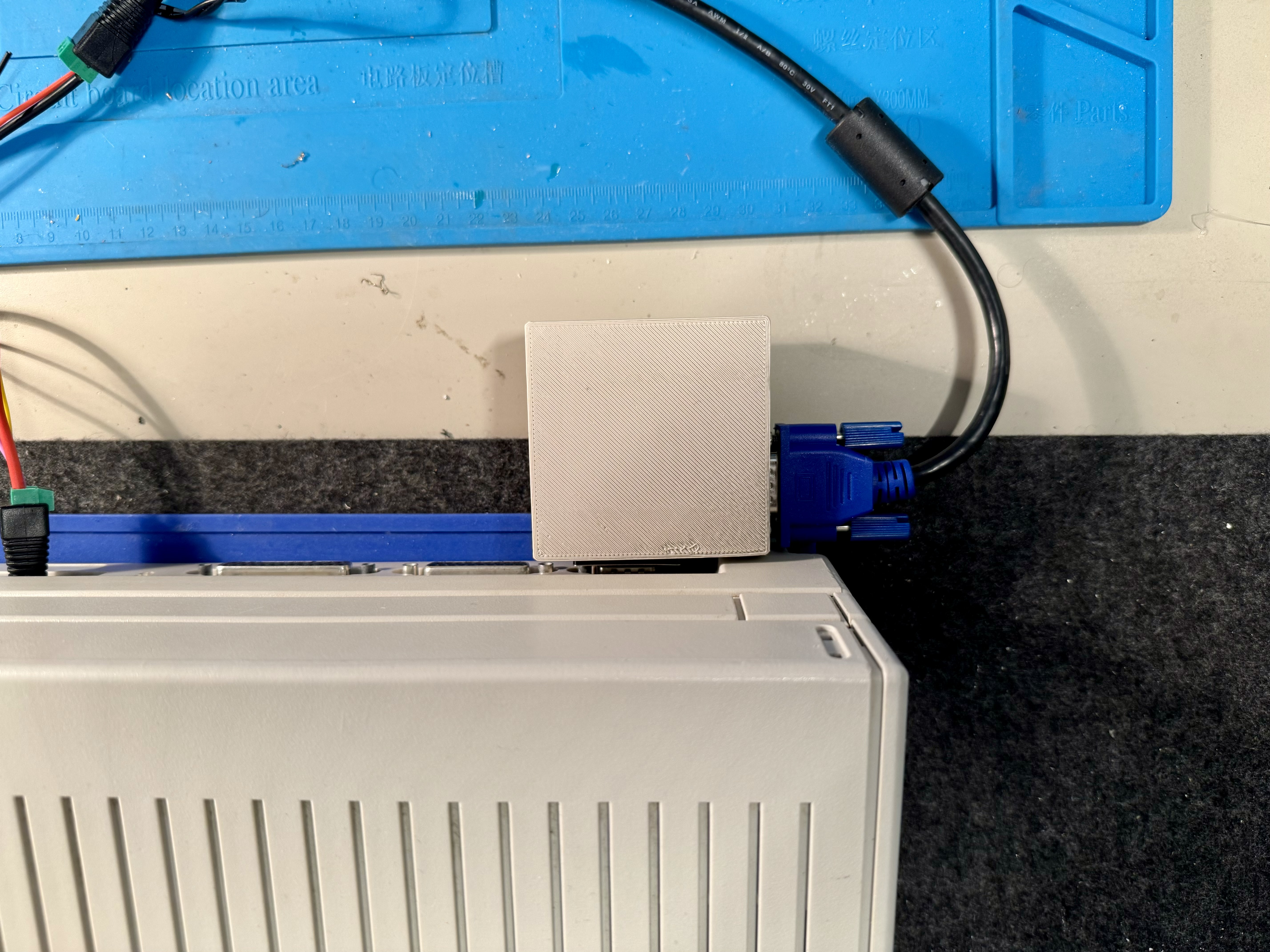

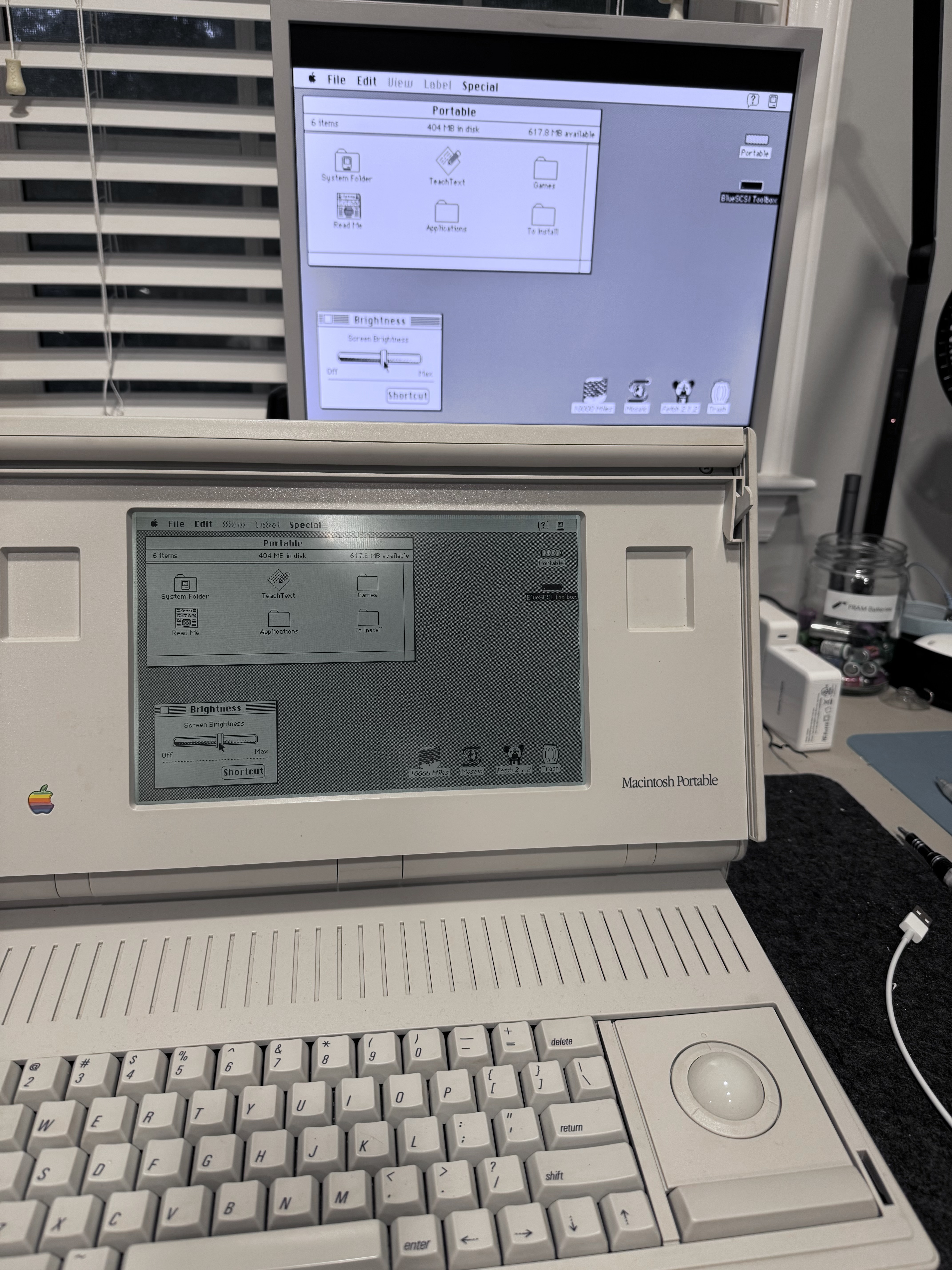

VGA output adapter

VGA output adapter

VGA output adapter

VGA output adapter

The Story

7MB Memory upgrade by Androda Apple Backlight Upgrade Kit Official Apple Case Androda’s Battery bypass card in the modem slot.

Restoration Log

Work Done

Every repair, recap, and restoration performed on this machine — documented as the work was completed.

2023

Retrobright

2023

Logic Board Recap
