Archive No. 308
Mac SE/30
Beck - Recapped Analog / Logic Boards, BlueSCSI
Circa 1989Fully Operational
The Story
Mac SE/30 Beck - Recapped Analog / Logic Boards, BlueSCSI

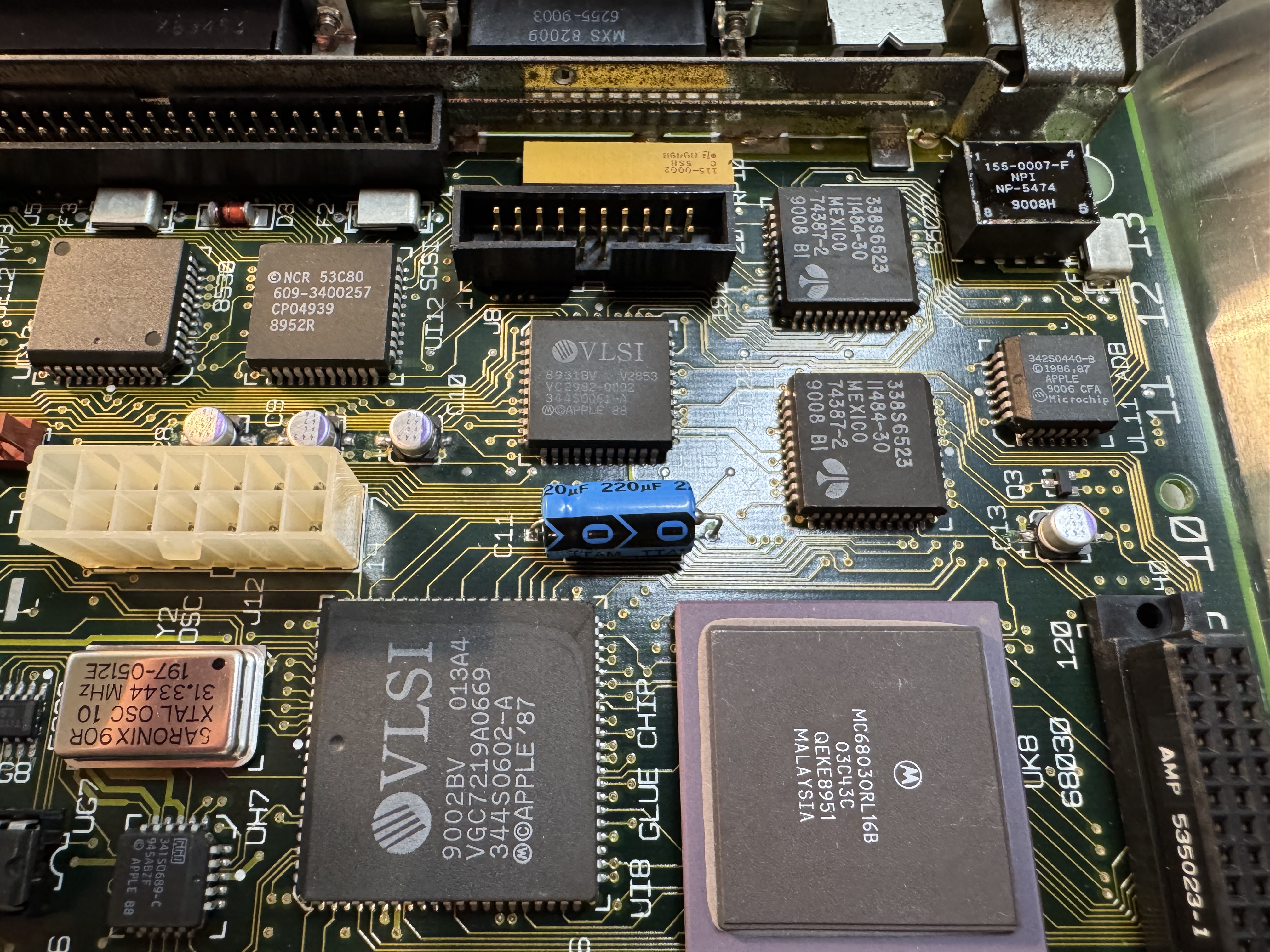

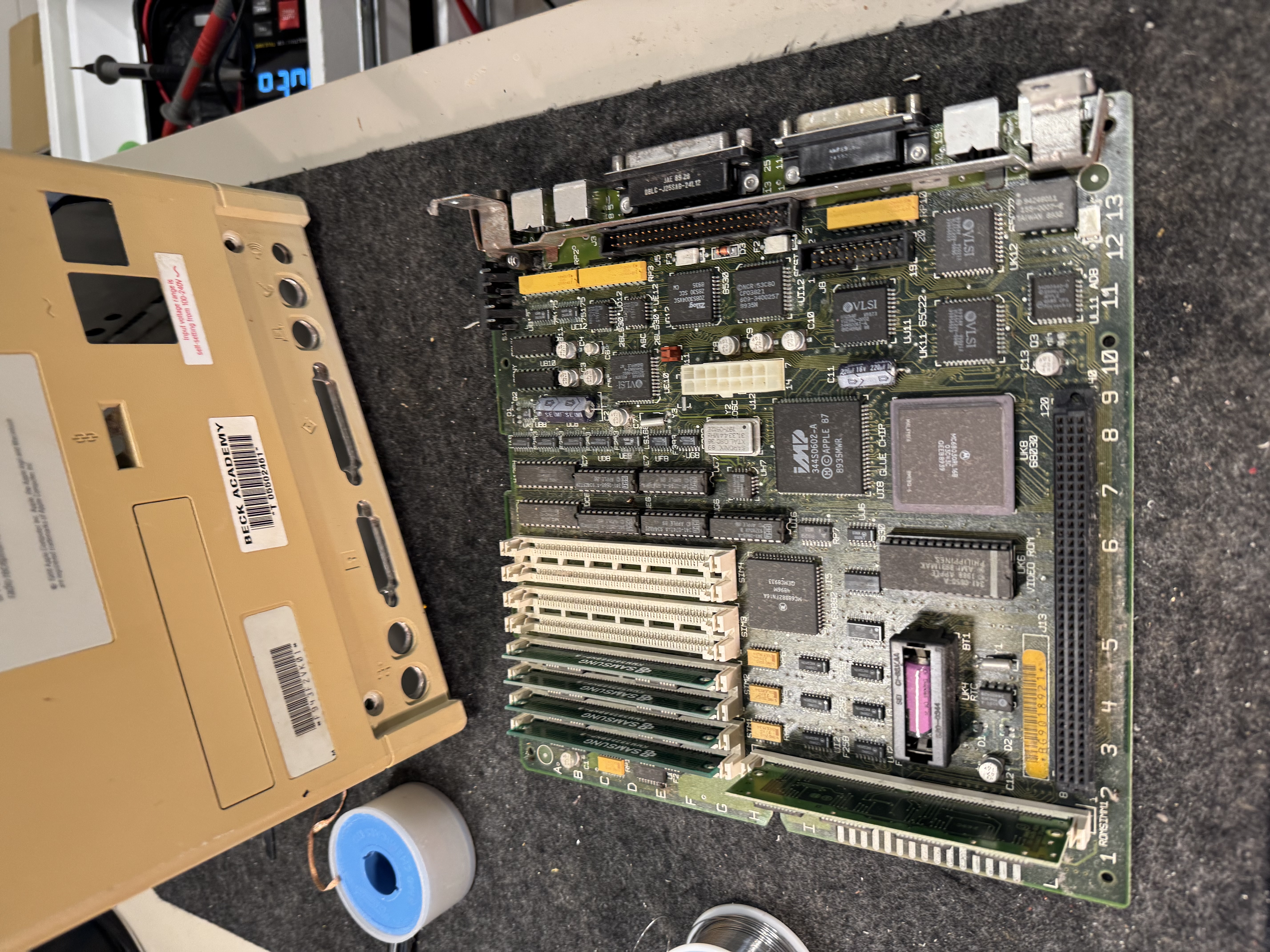

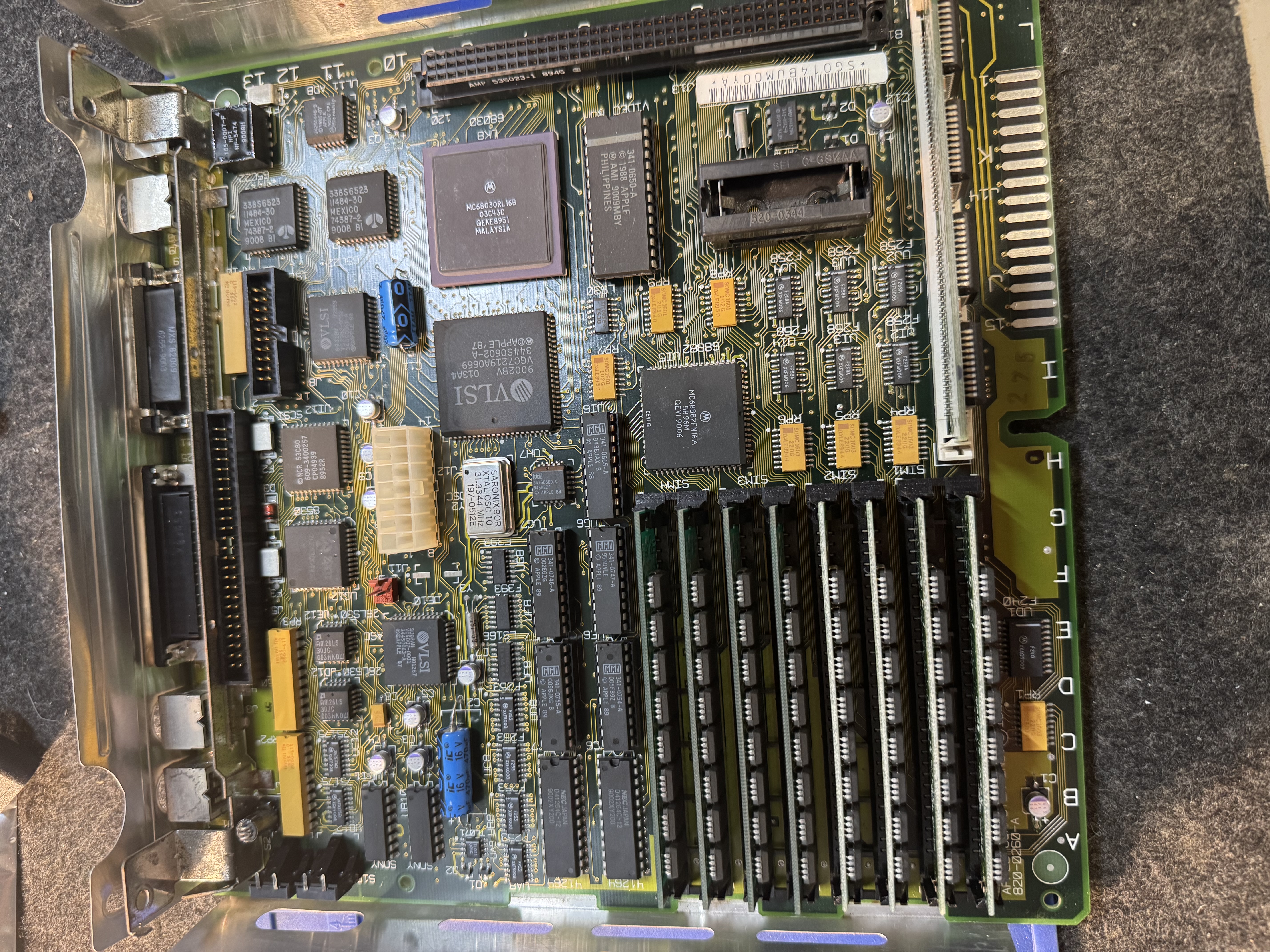

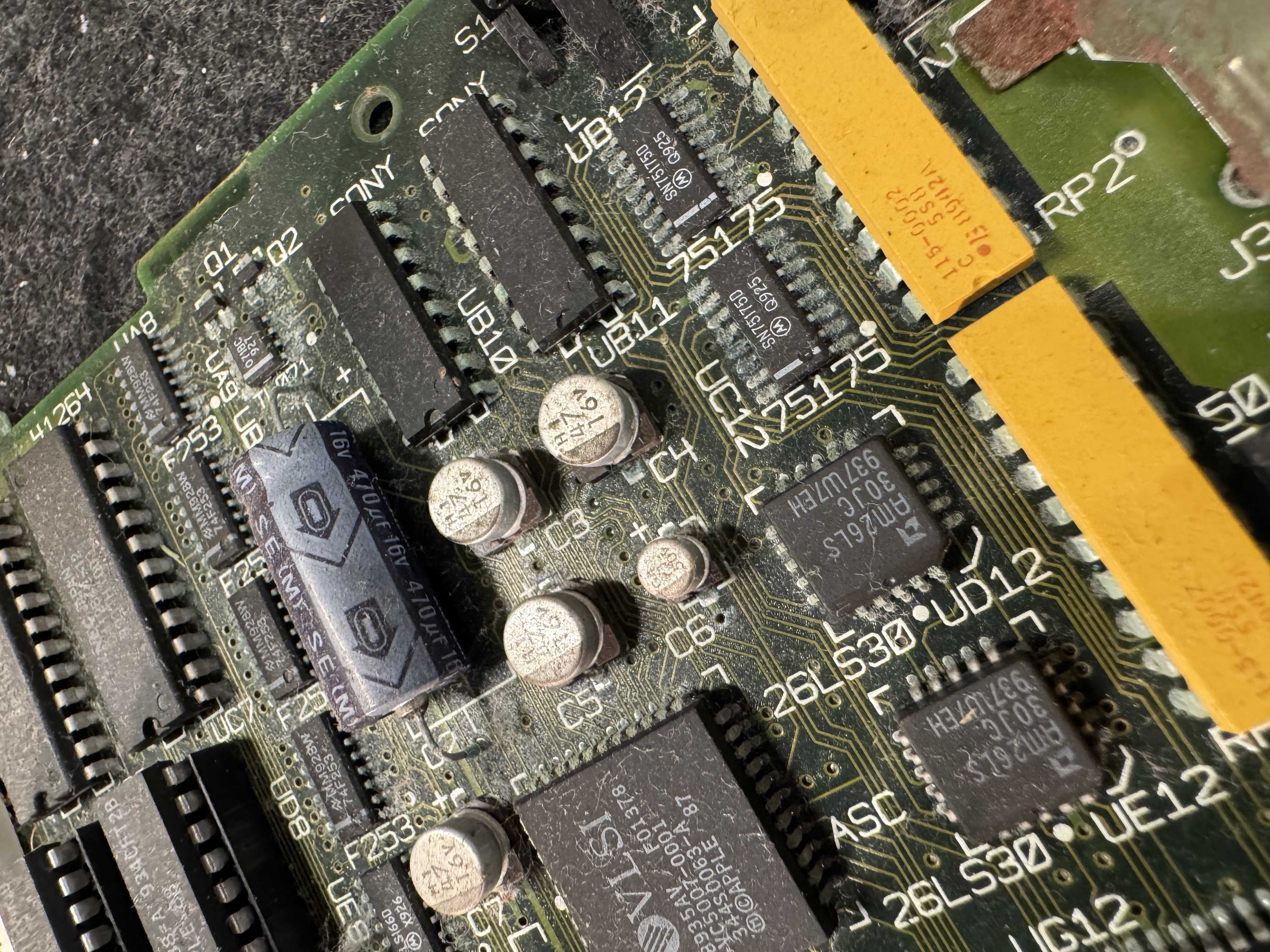

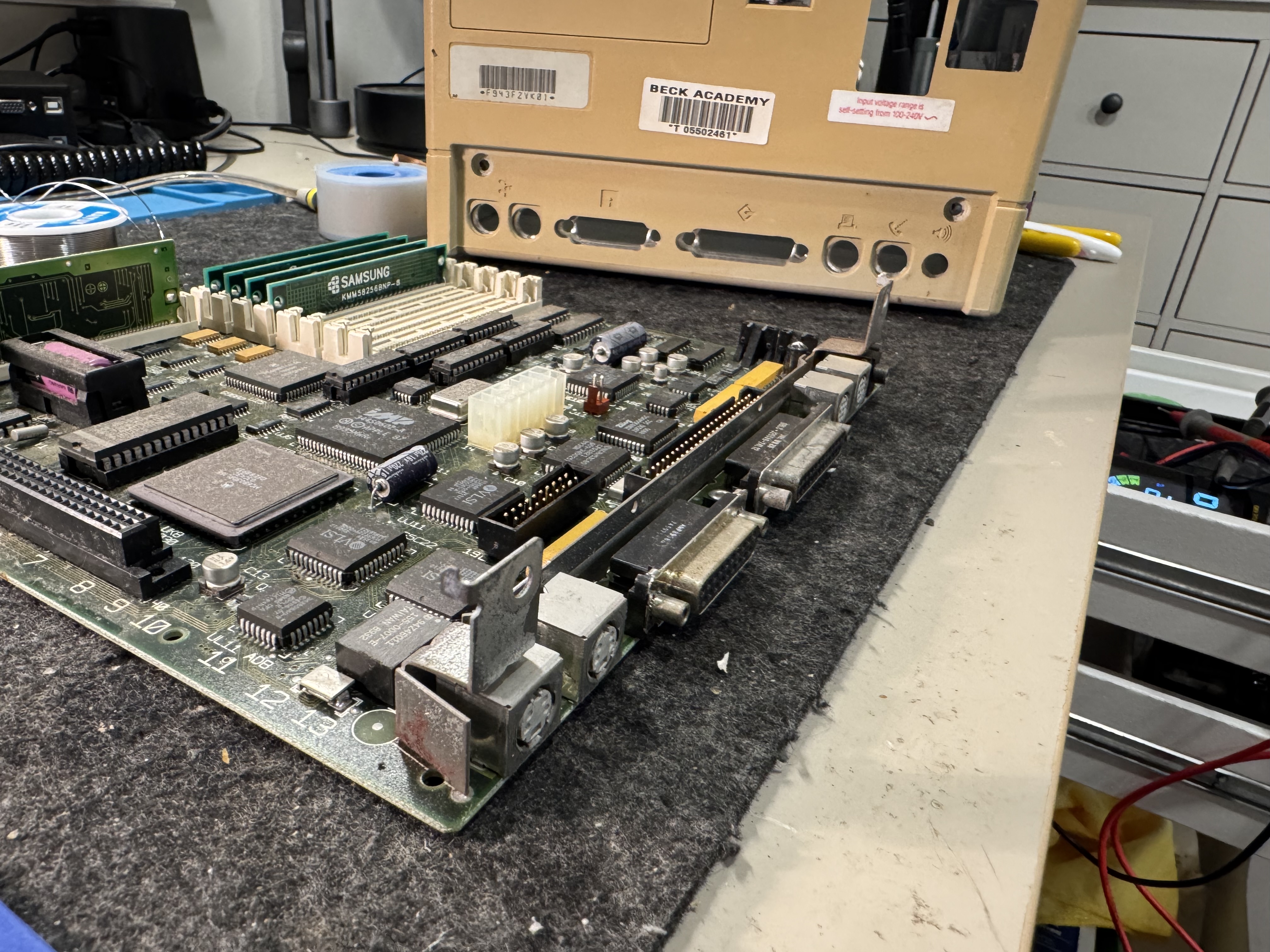

Cleaned and recapped logic board. Boots with strong sound. BlueSCSI v1.2 accessible

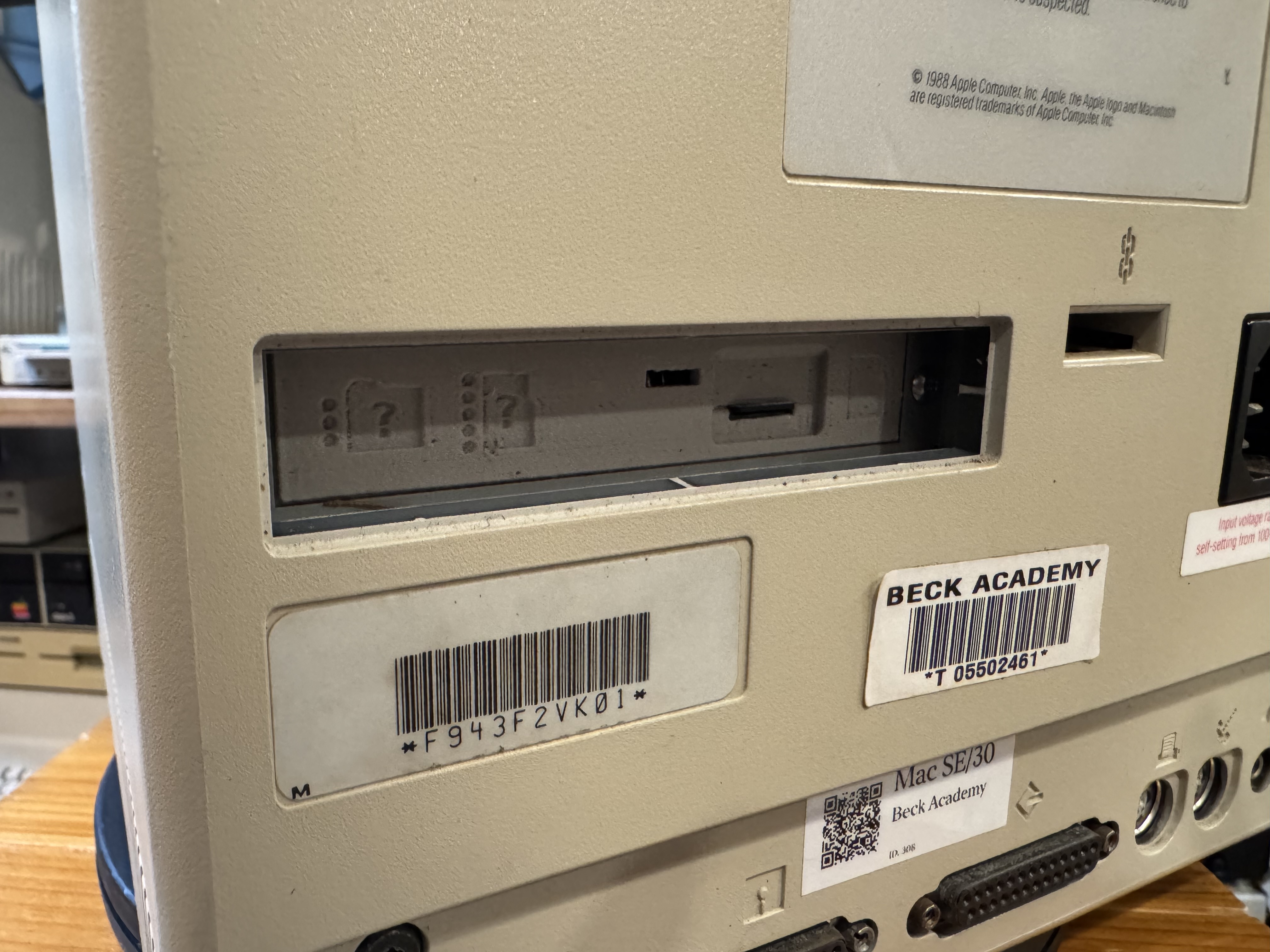

through expansion port Floppy drive works. Expansion port cover taped inside frame.
Archival Status: Fully Operational.
Specifications
Technical Blueprint
Ref: M5119
Processor
Motorola 68030 16MHz
Memory
2MB
Graphics
512x342 9" monochrome
Operating System

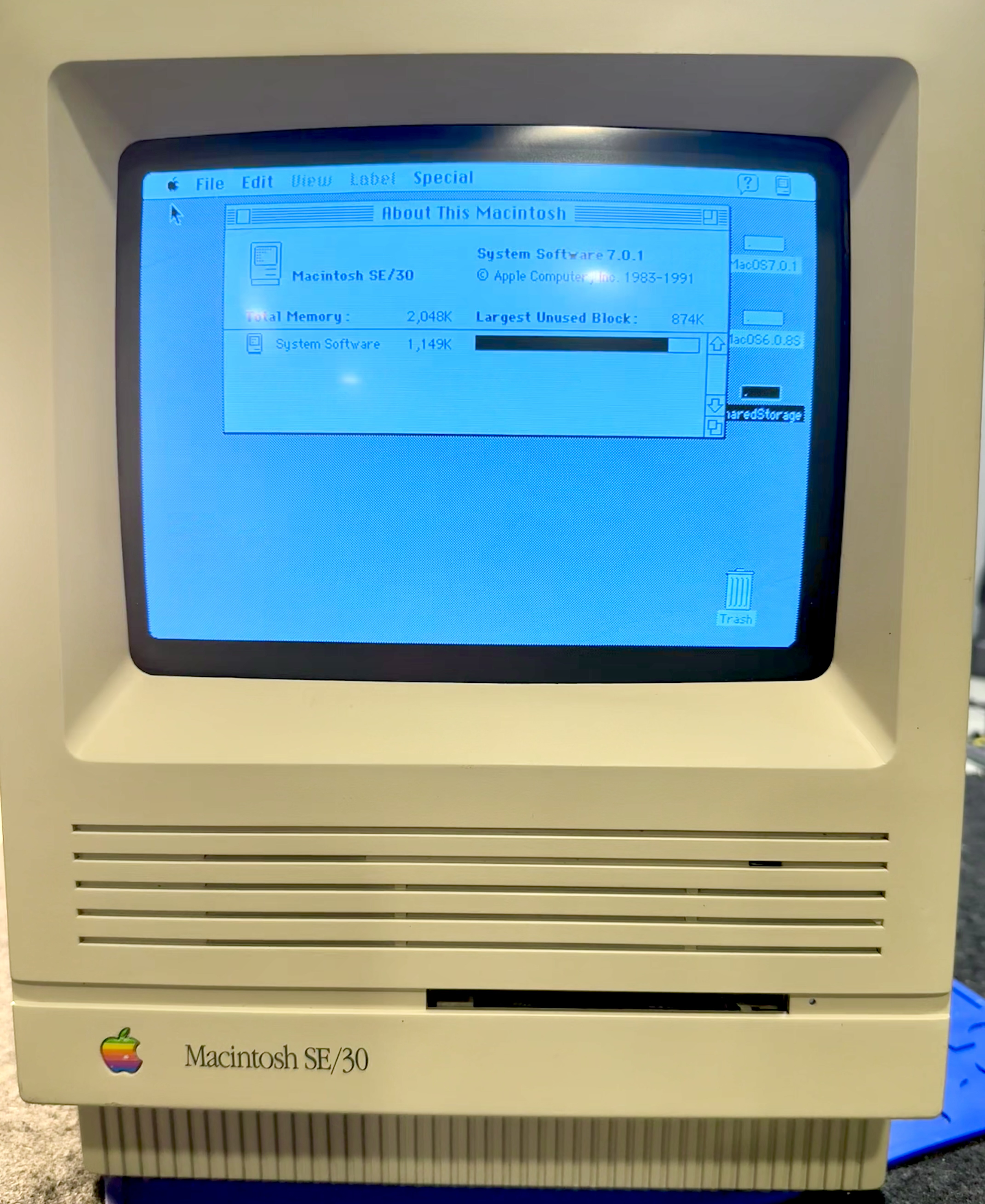

System 6.0.8, System 7.0.1
Hardware Notes

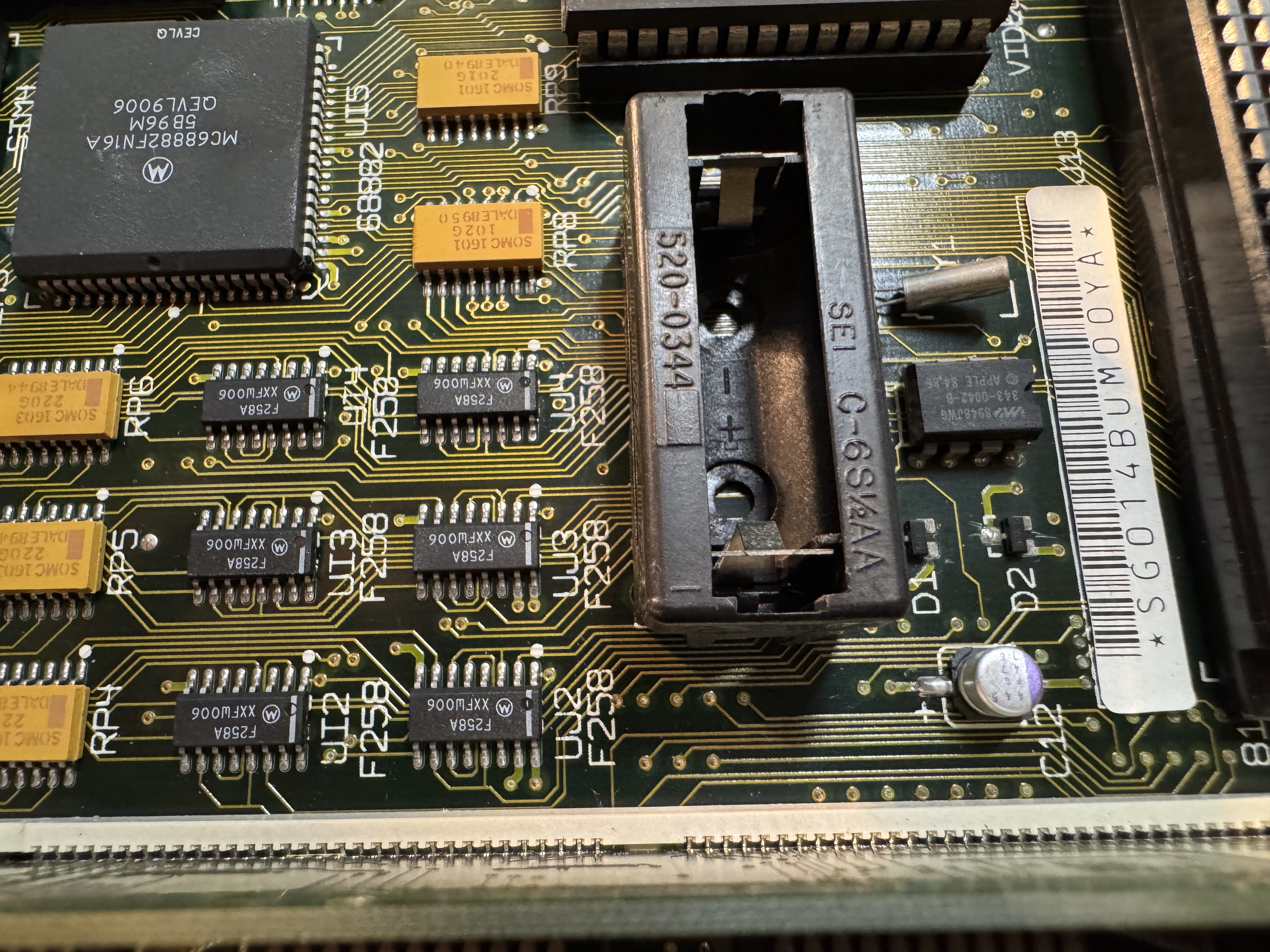

PRAM battery removed
Gallery
Detailed Observations

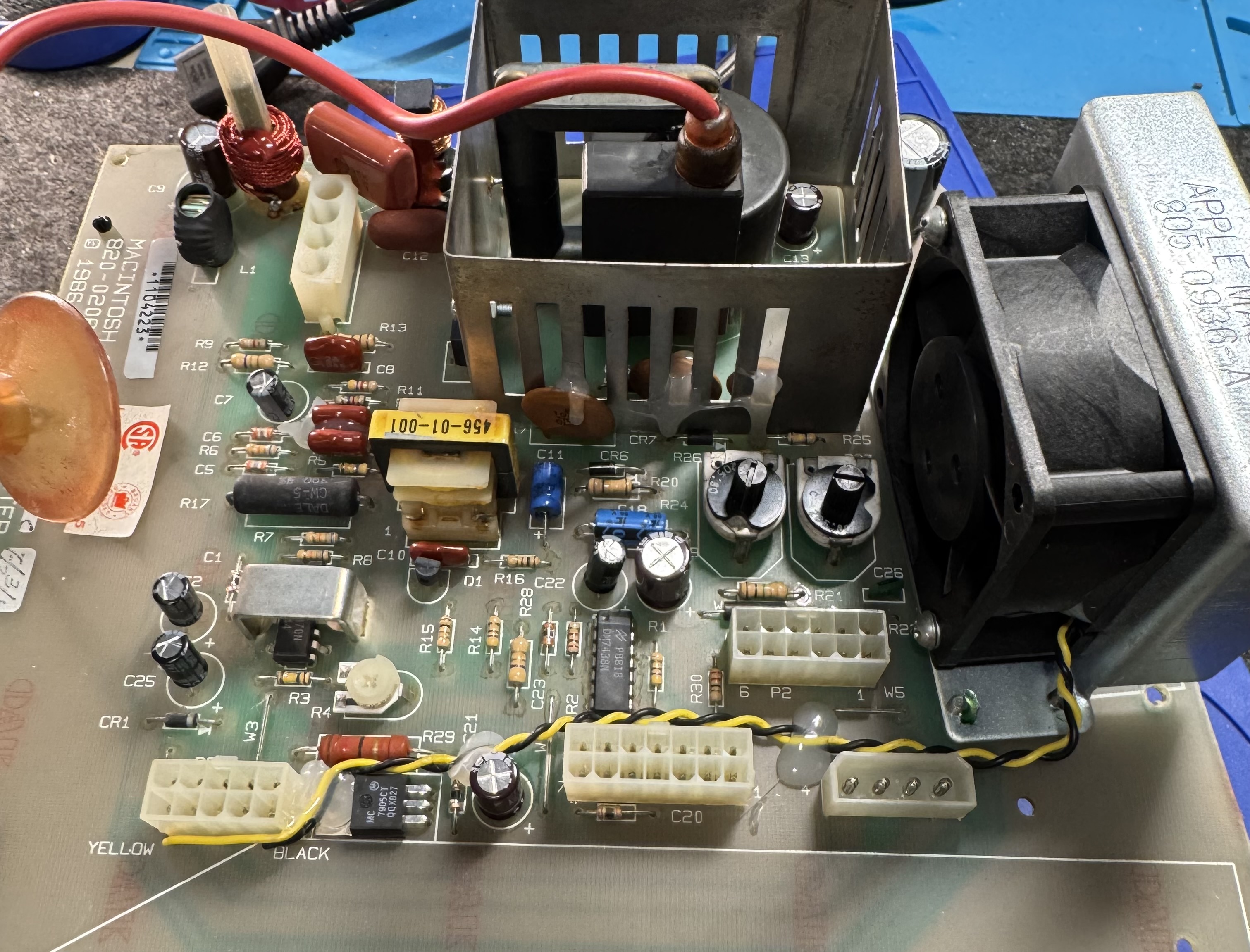

Recapped analog board
Restoration Log
Work Done
Every repair, recap, and restoration performed on this machine — documented as the work was completed.
2025
Floppy Drive Recondition
2025
Floppy Drive Gear Replacement
2025
Analog Board Recap
2025
Retrobright
2025
