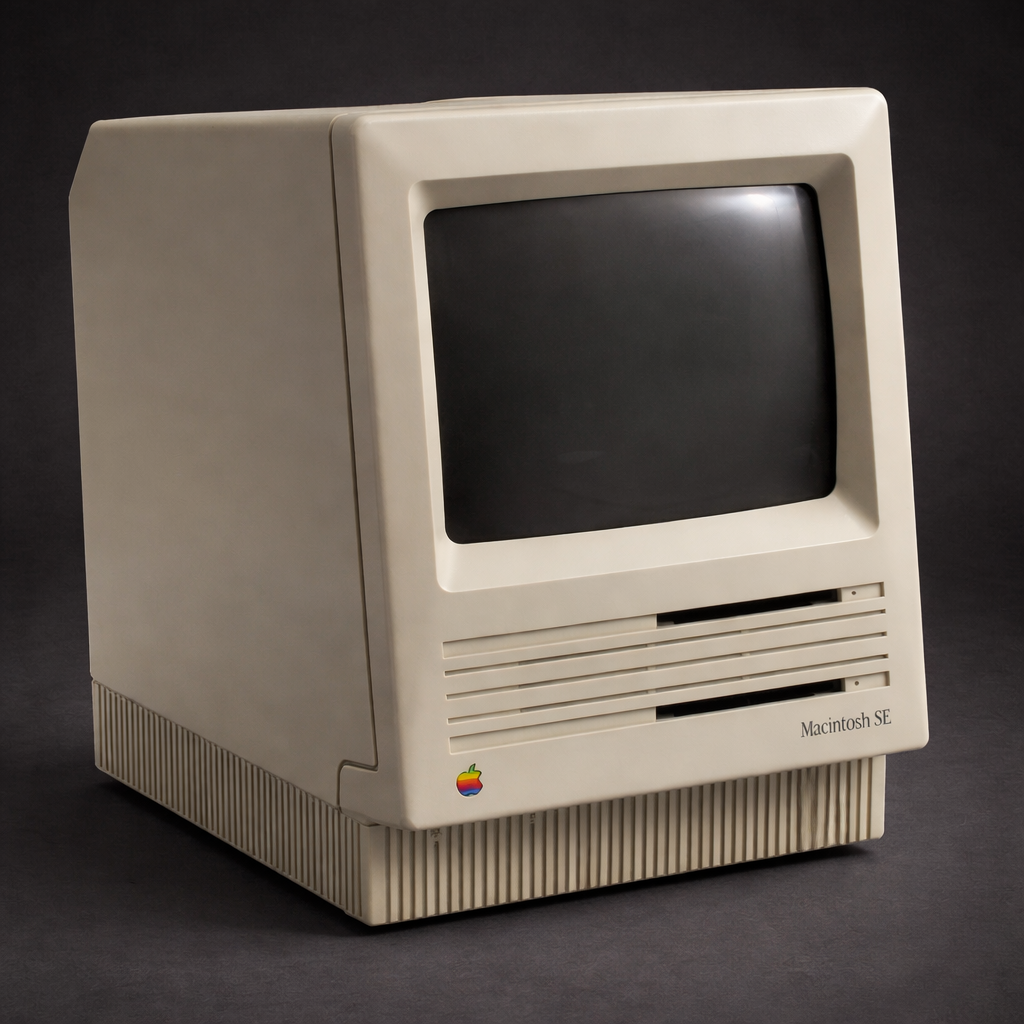

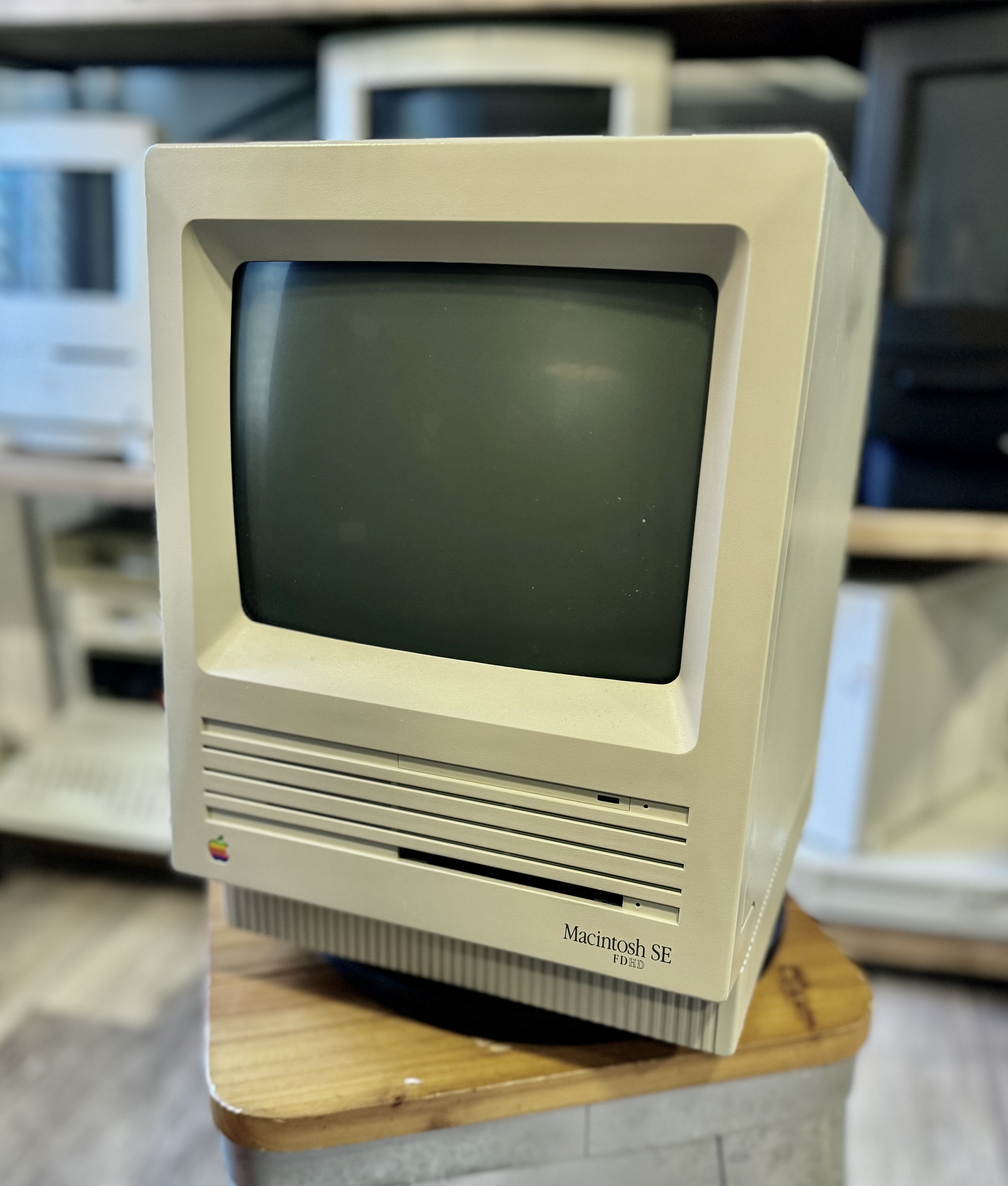

Mac SE FDHD
030 upgrade
Historical Context
The SE added two things the original compact Mac desperately needed: an expansion slot and a fan. The fan meant you could run it all day without the case reaching dangerous temperatures. The PDS expansion slot meant you could add an accelerator, a second CPU, or a hard disk controller. These small additions opened the compact Mac to serious professional use for the first time. This particular unit is running a Harris International 68030 upgrade card and has had the power supply replaced with a modern Meanwell unit.
Specifications
Technical Blueprint
Ref: M5011
Processor

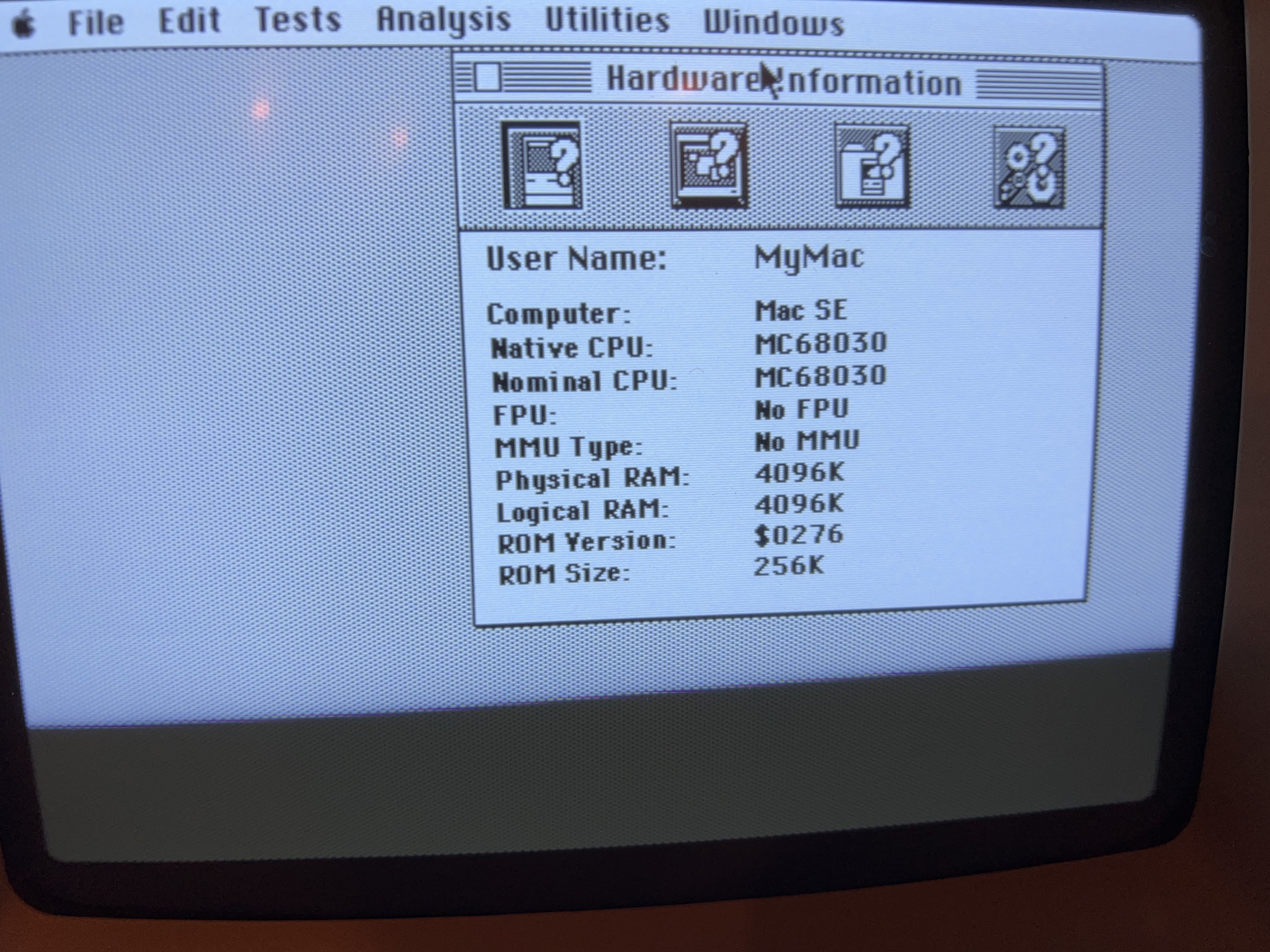

Motorola 68030 25MHz
Memory
4MB 30-pin SIMM
Storage
BlueSCSI 2GB in expansion port
Graphics
n/a
Operating System
System 7.0.1
Hardware Notes
PRAM battery removed

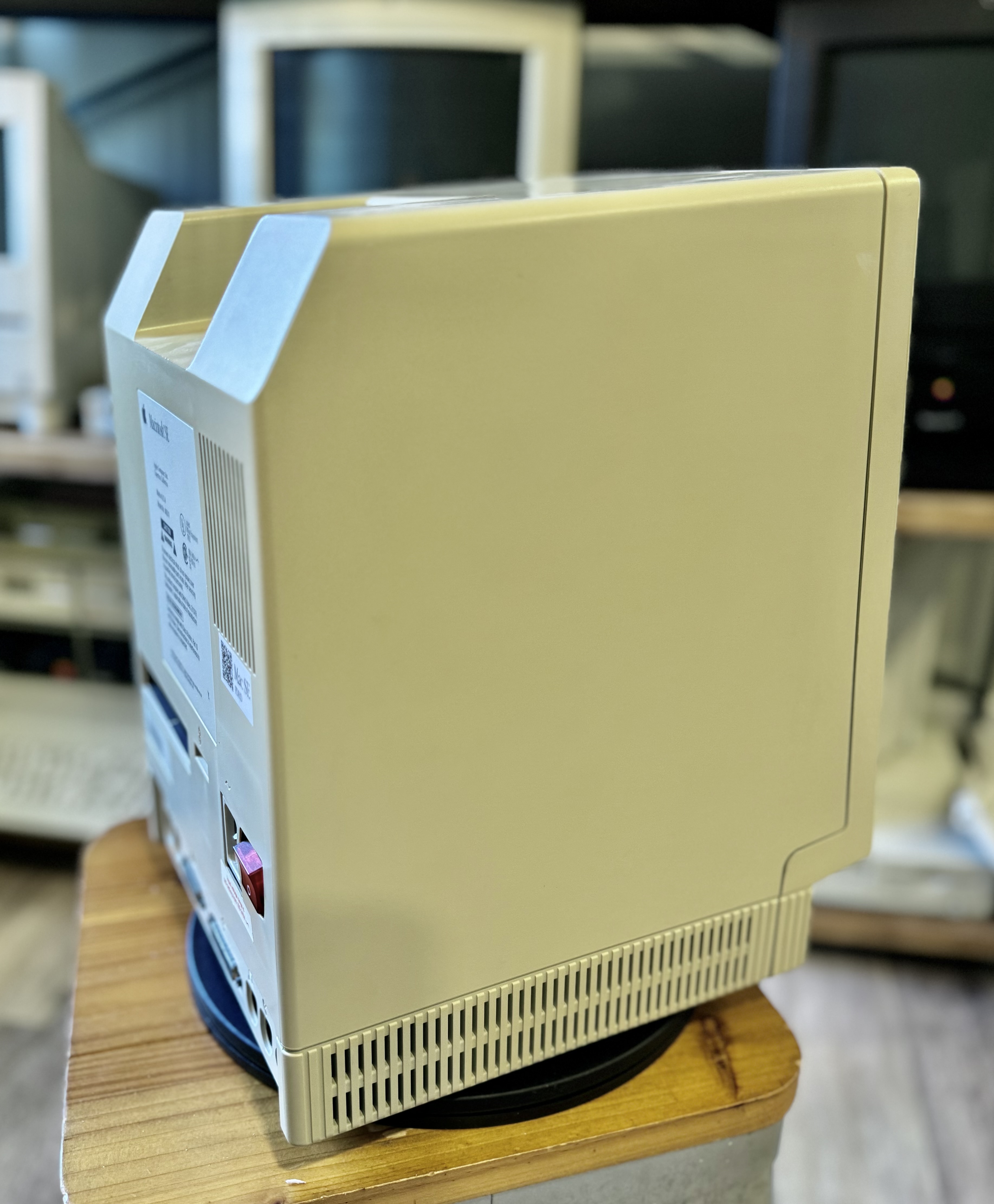

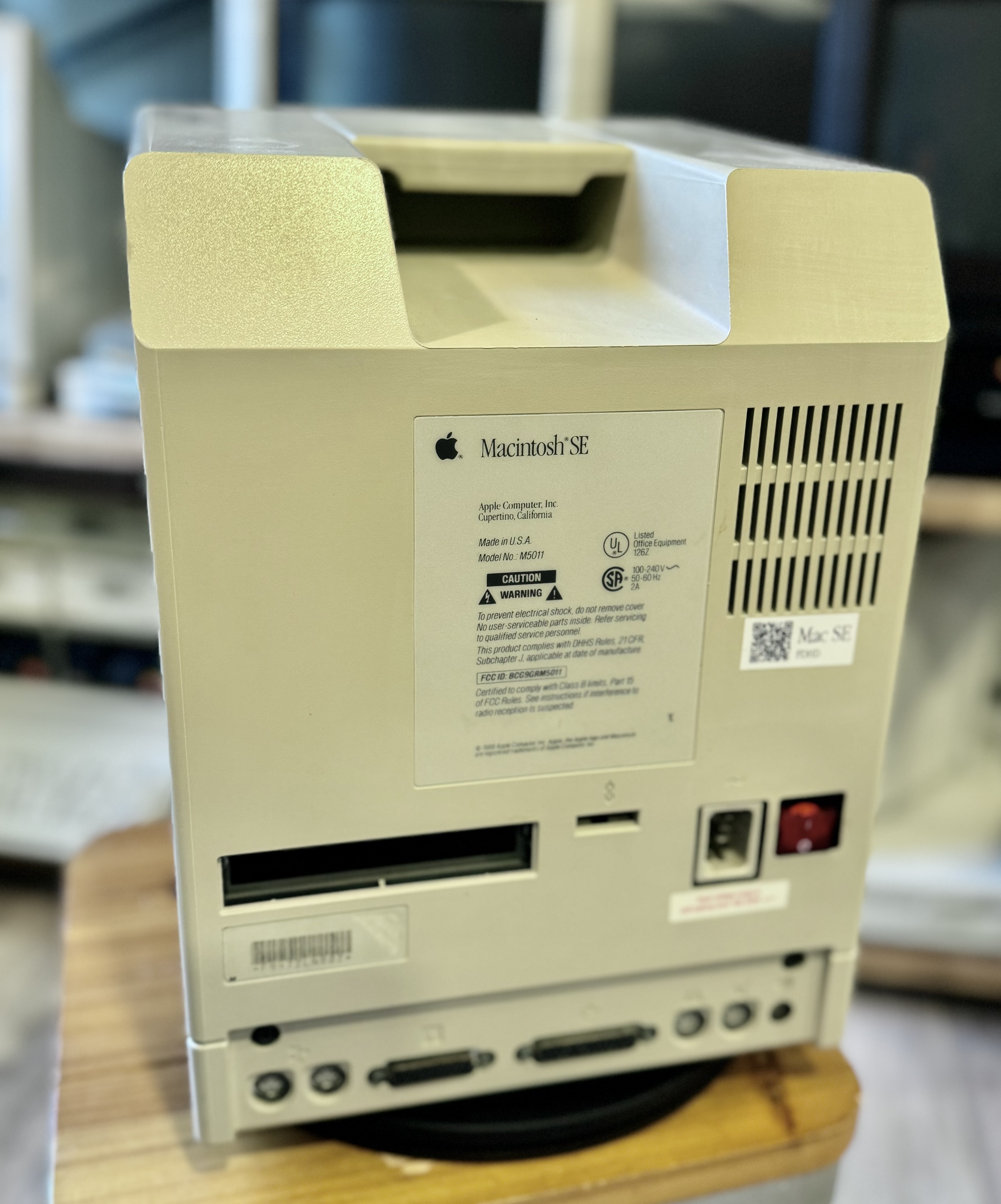

Gallery
Detailed Observations
The Story

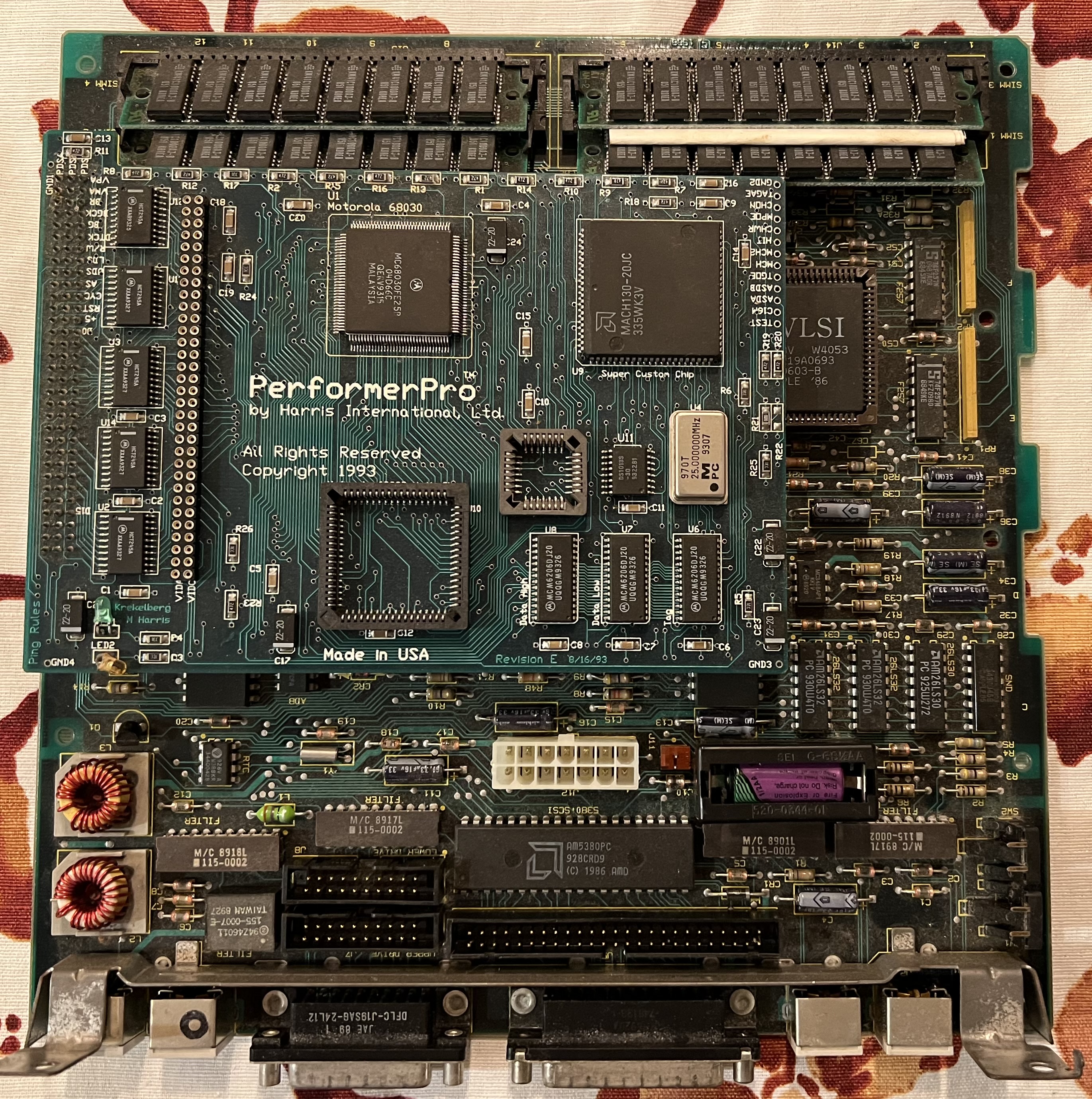

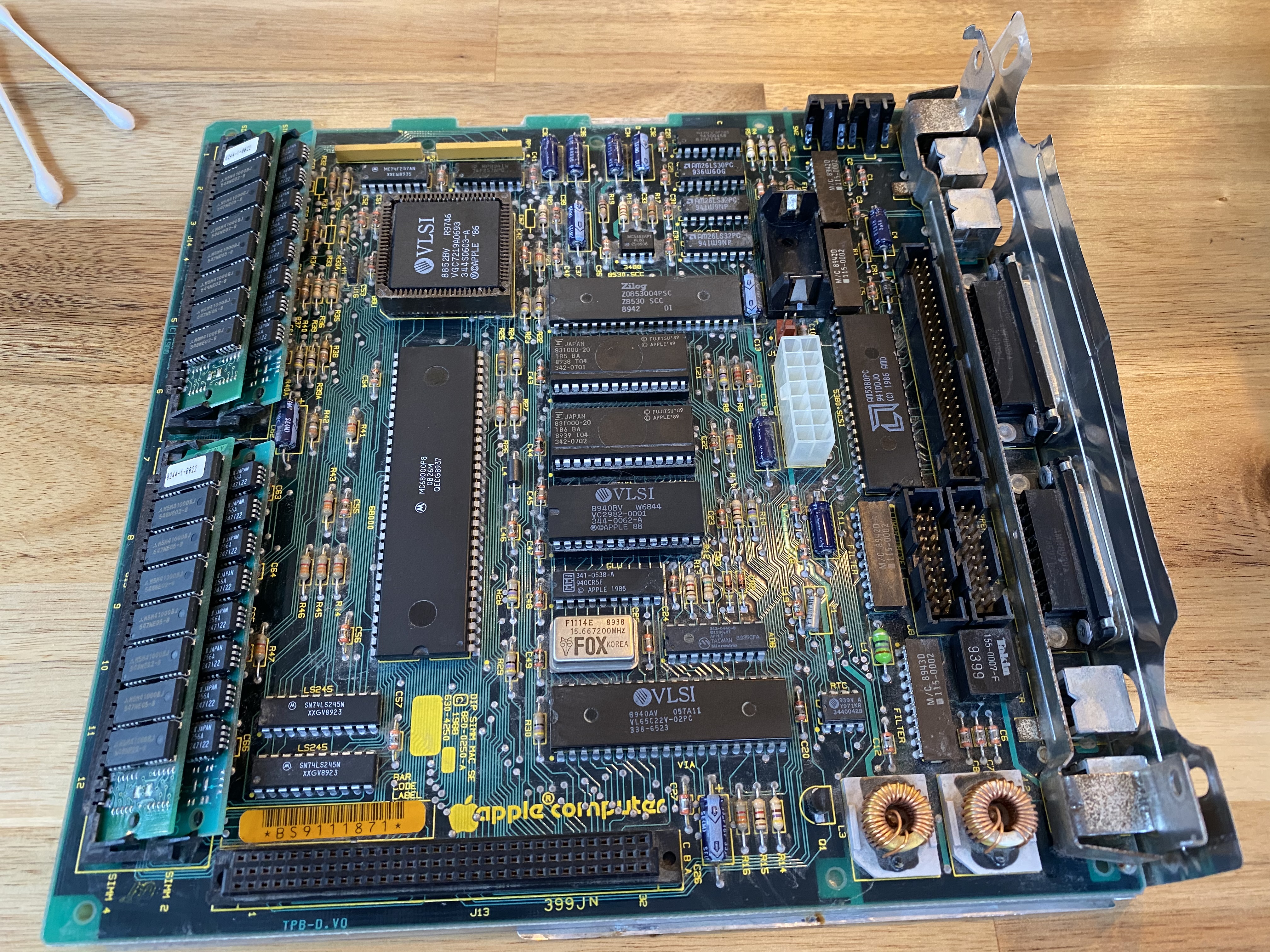

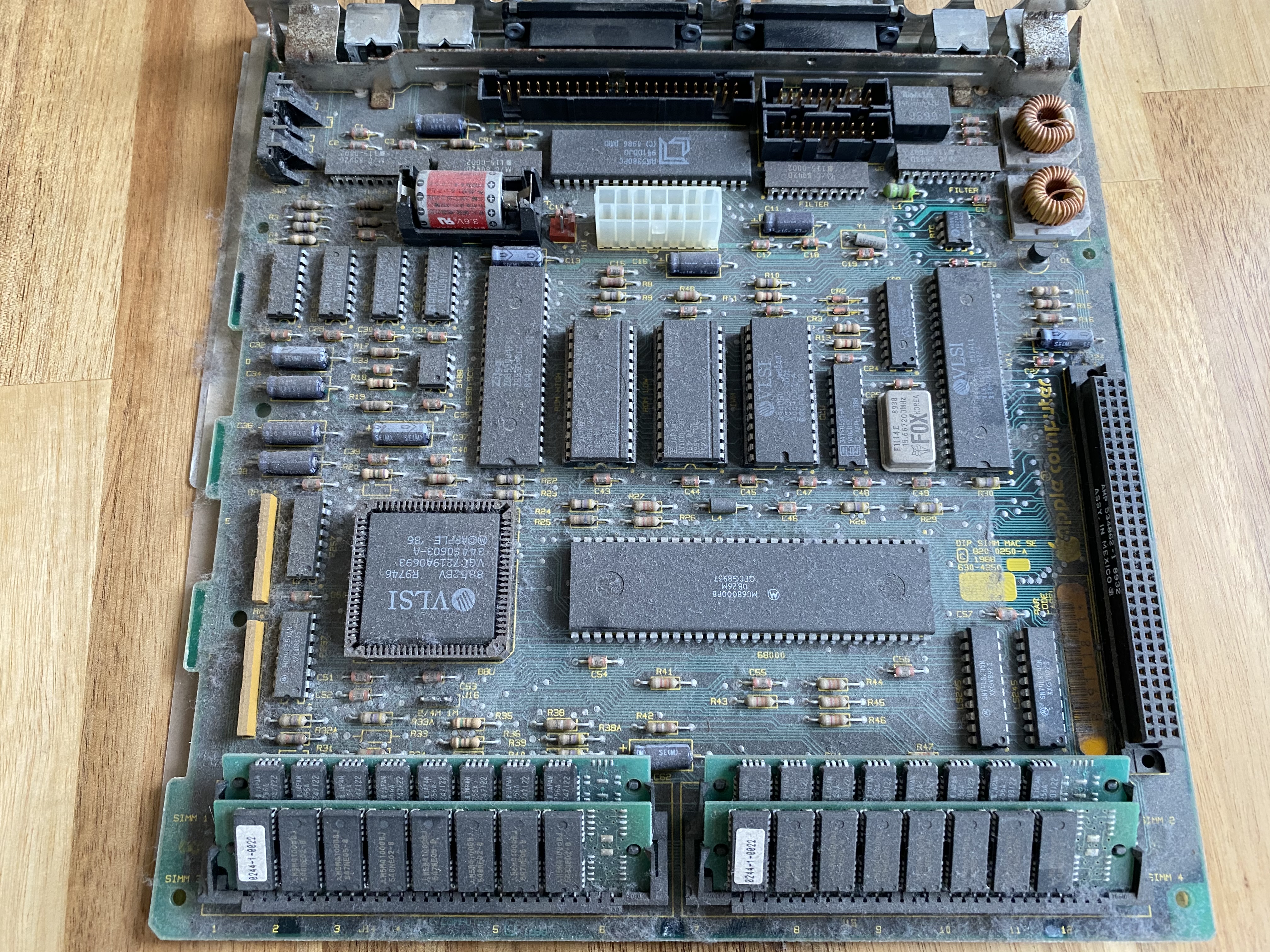

Harris Int’l 68030 upgrade card pulled from other SE. Replaced Power supply with a mean well unit following JDW (Youtuber's) directions, but messed up switch and had to switch to another switch which doesn't fit quite right.
Restoration Log
Work Done
Every repair, recap, and restoration performed on this machine — documented as the work was completed.
