Archive No. 93
Twentieth Anniversary Mac
Sonnet Crescendo G3 400MHz
The Story

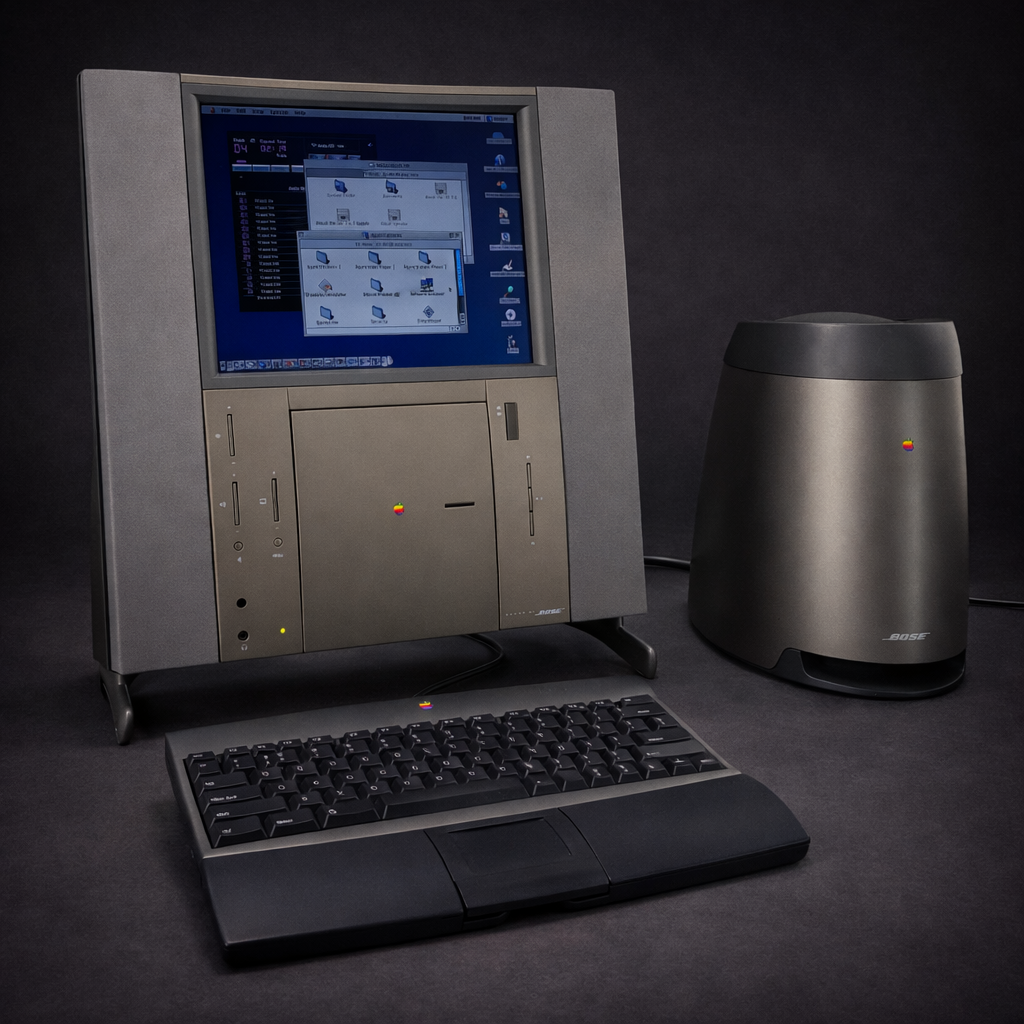

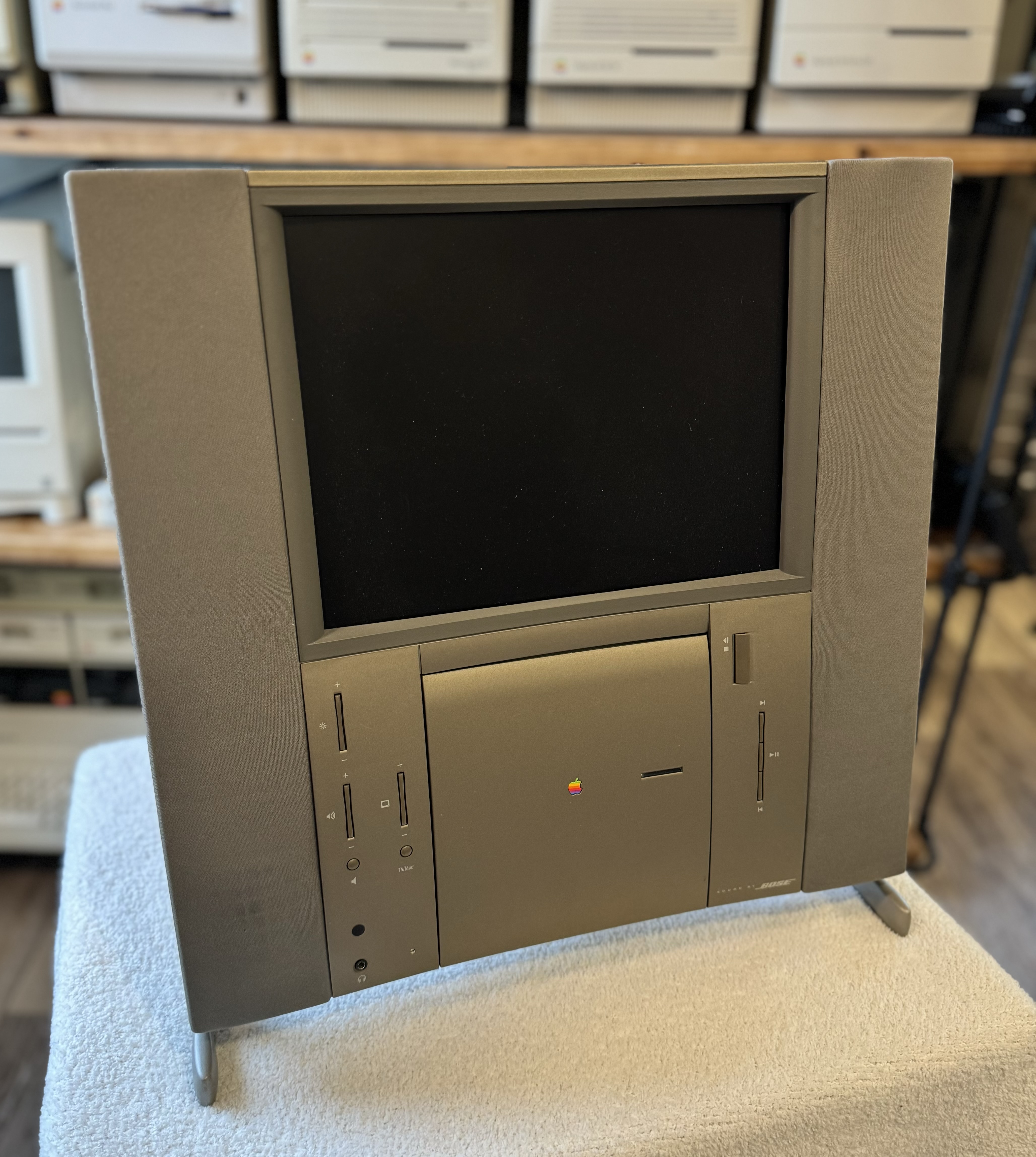

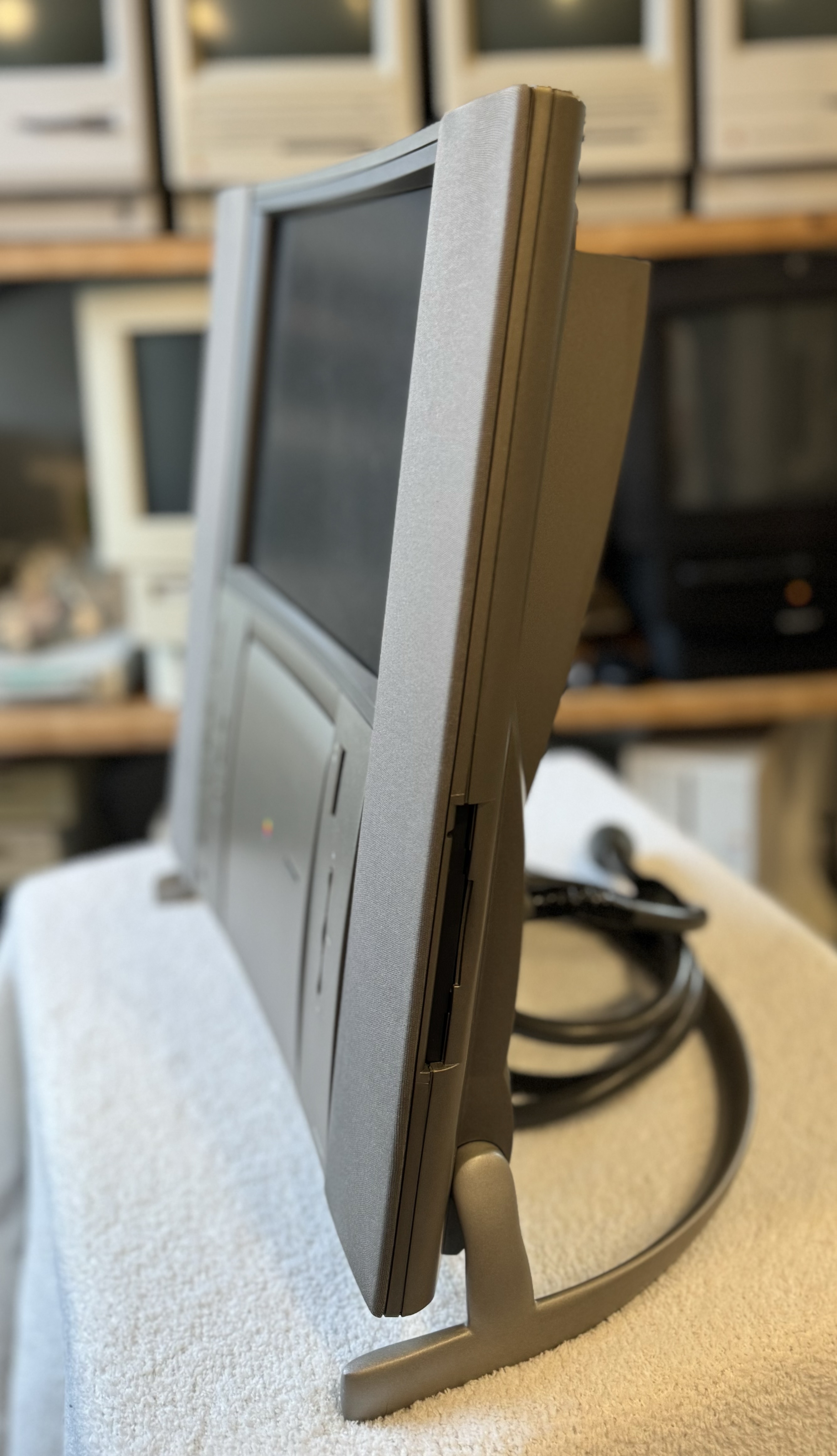

Twentieth Anniversary Mac Sonnet Crescendo G3 400MHz

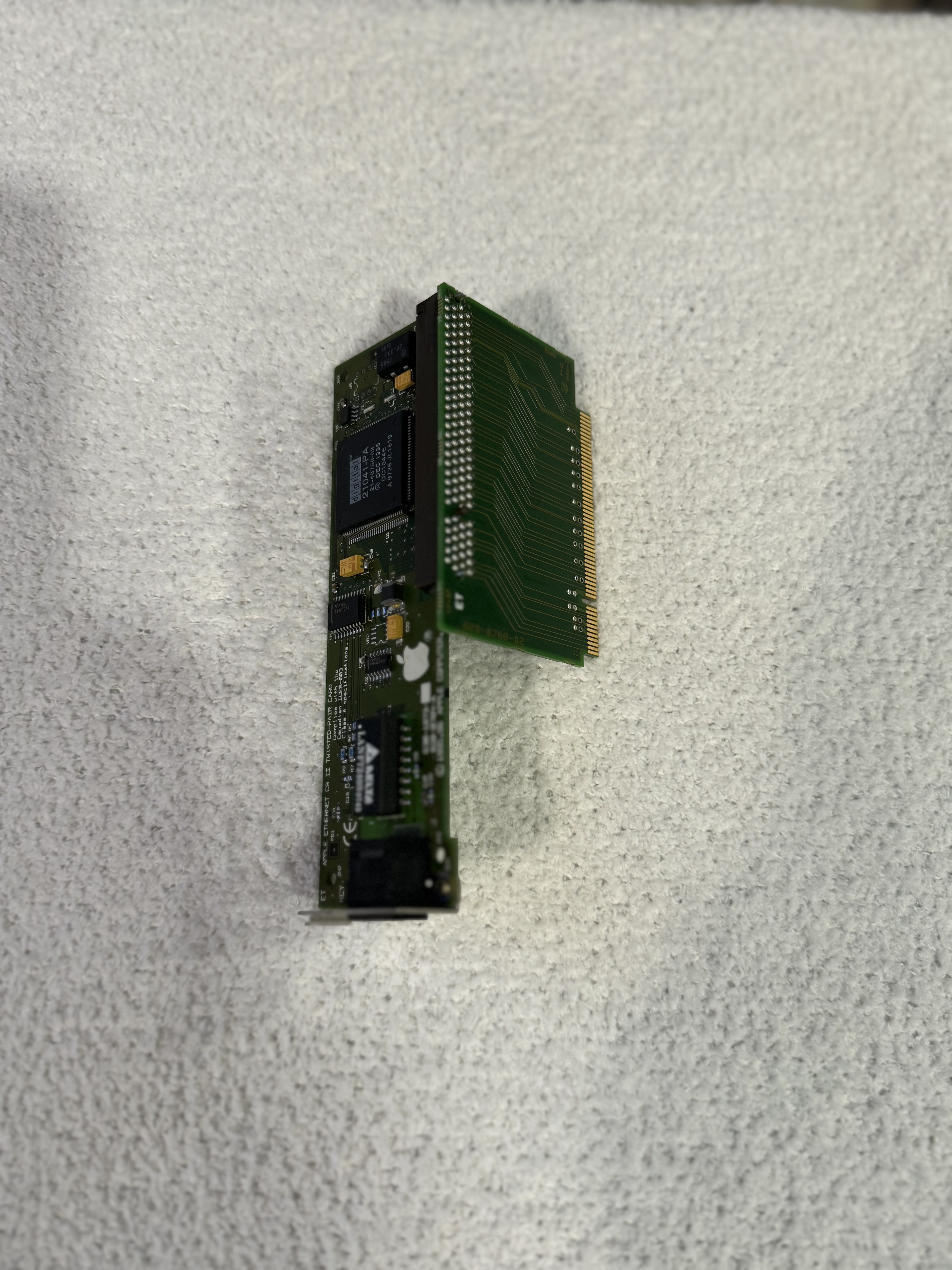

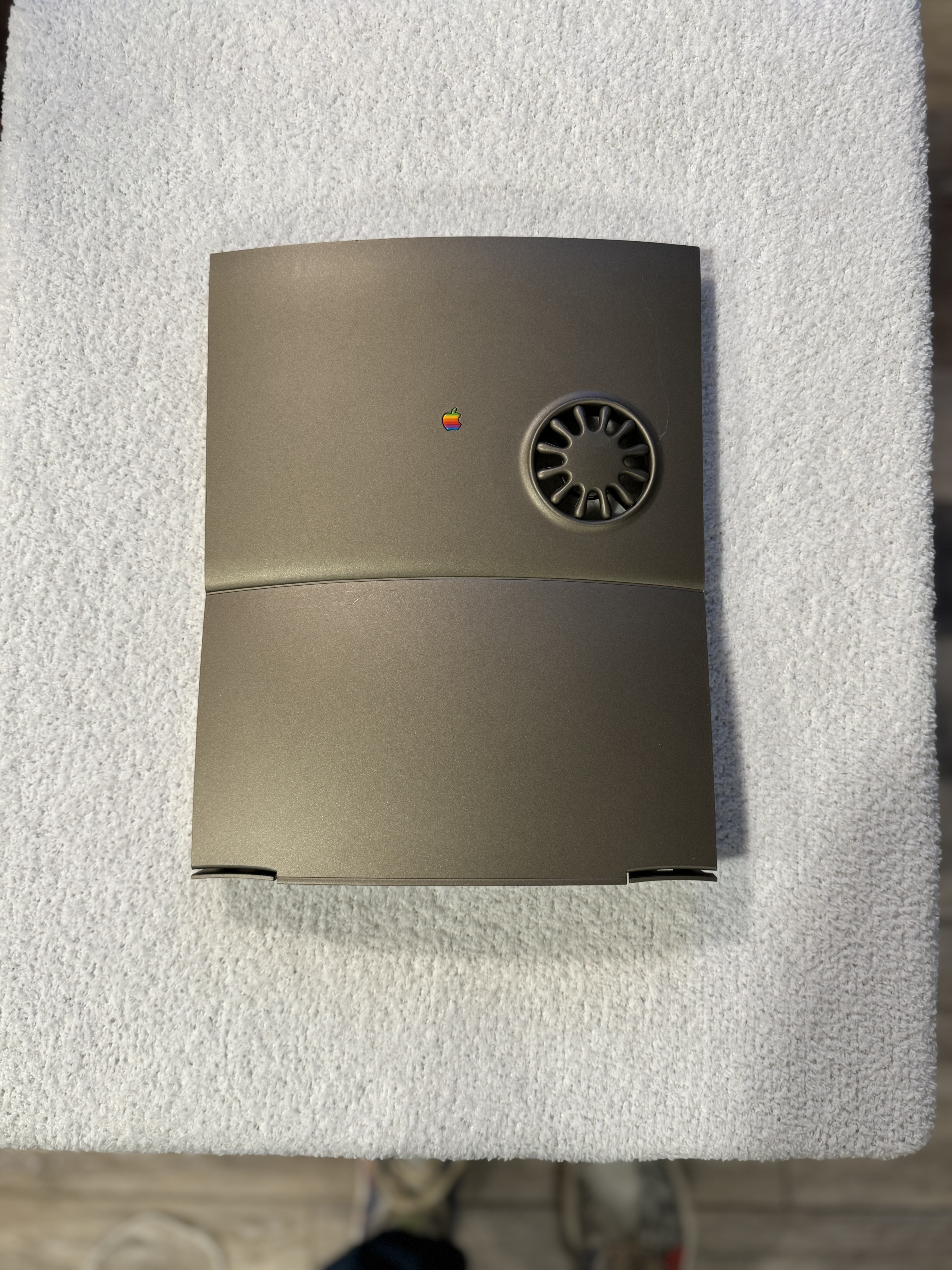

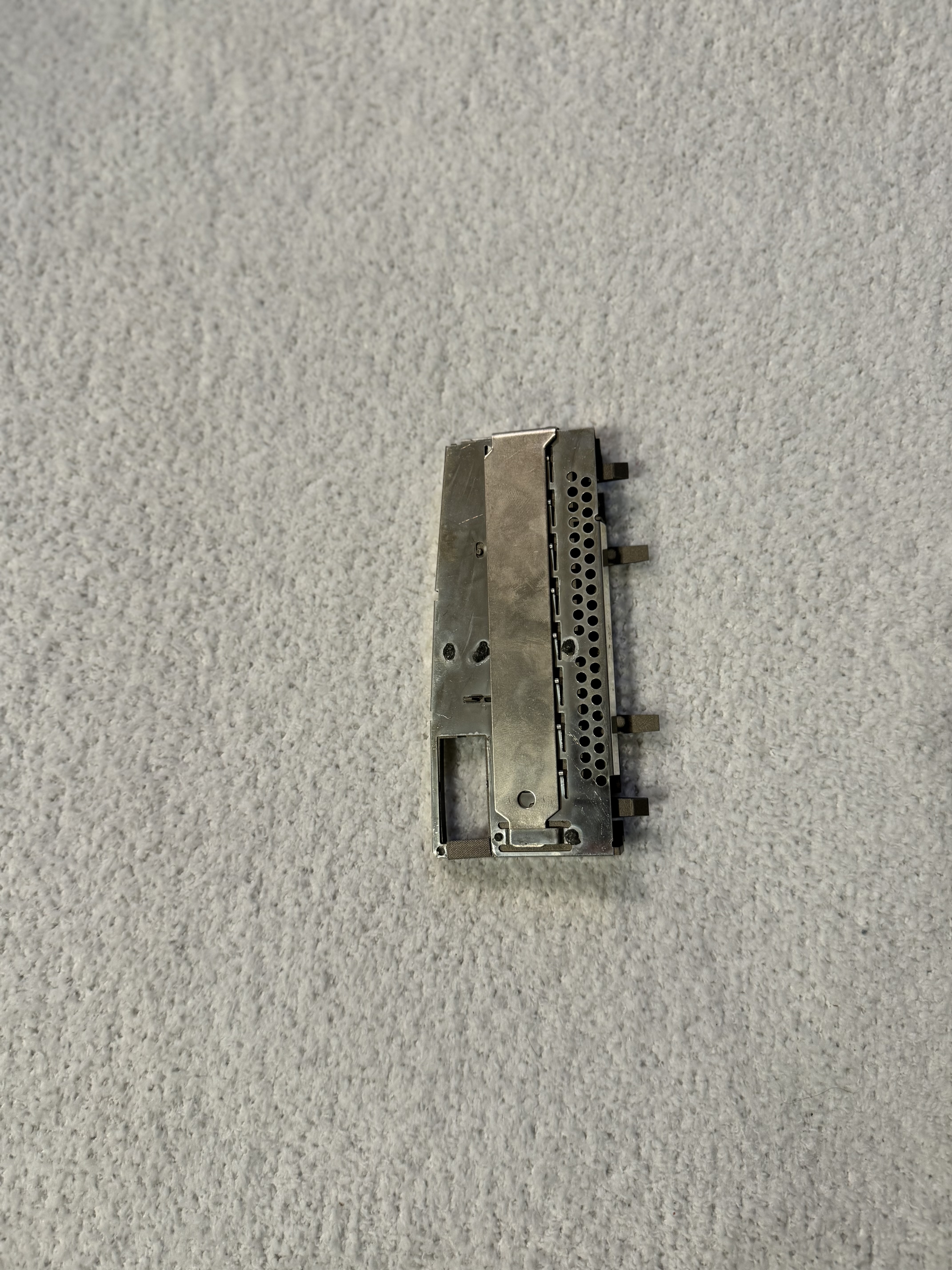

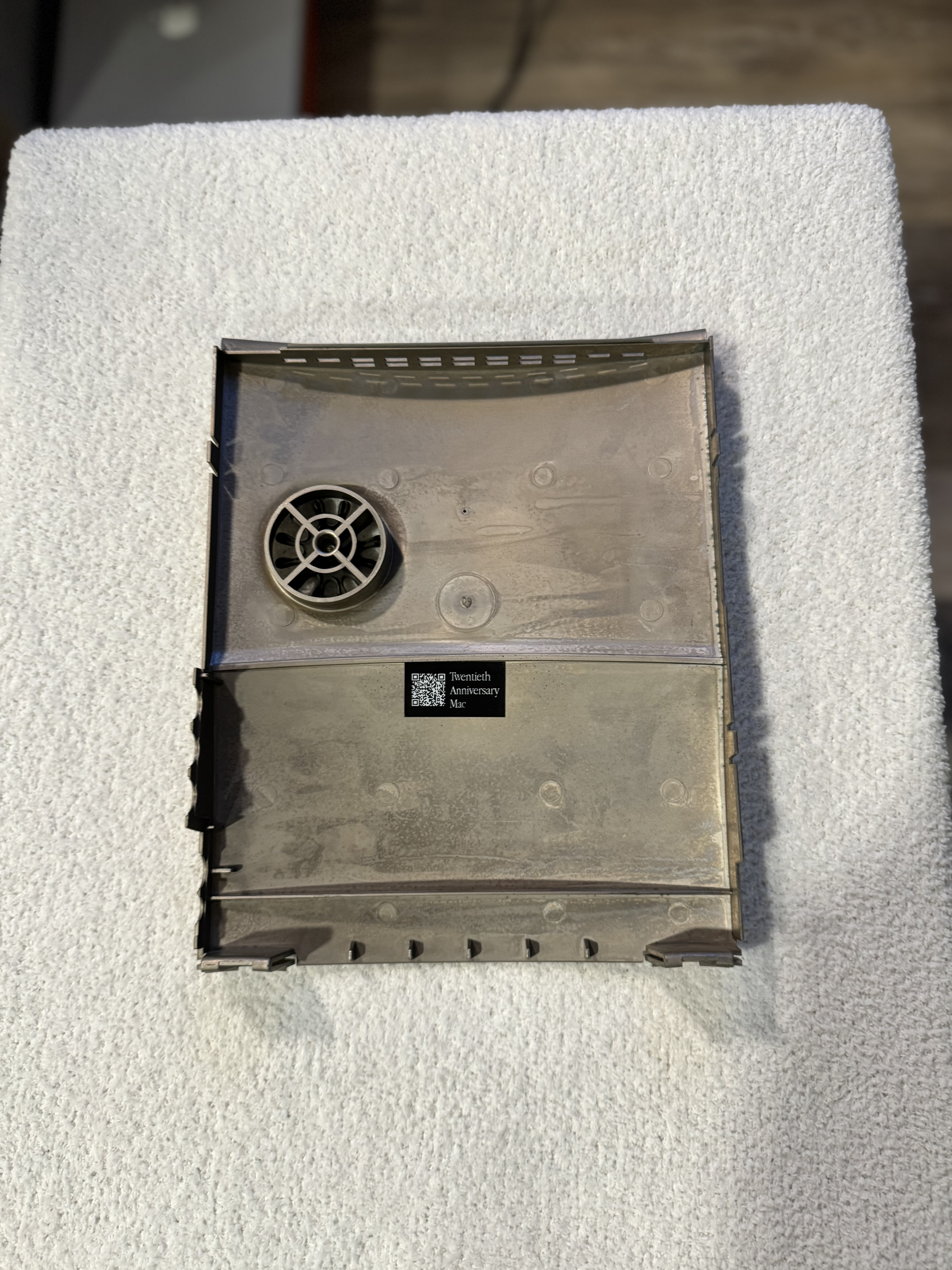

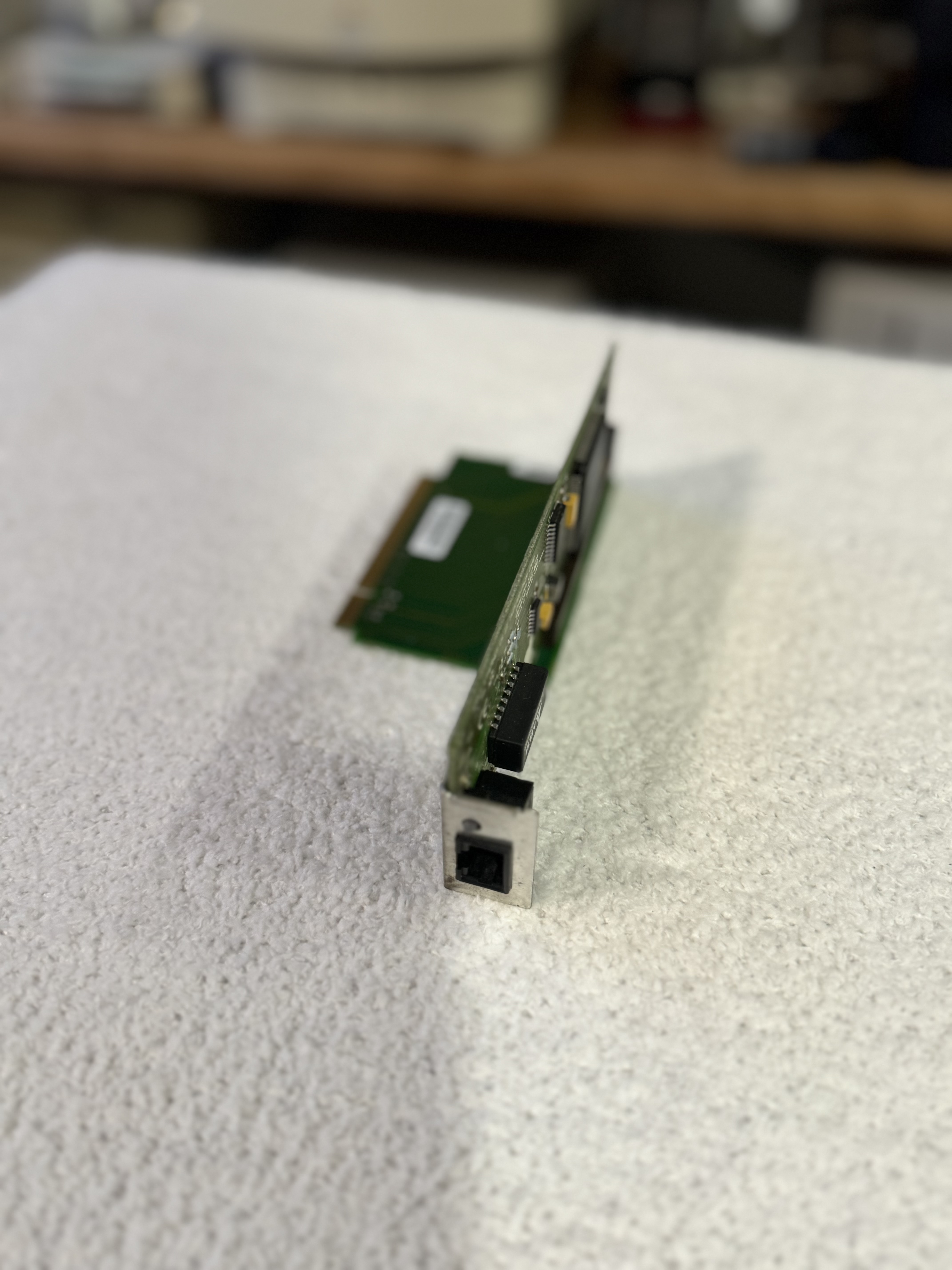

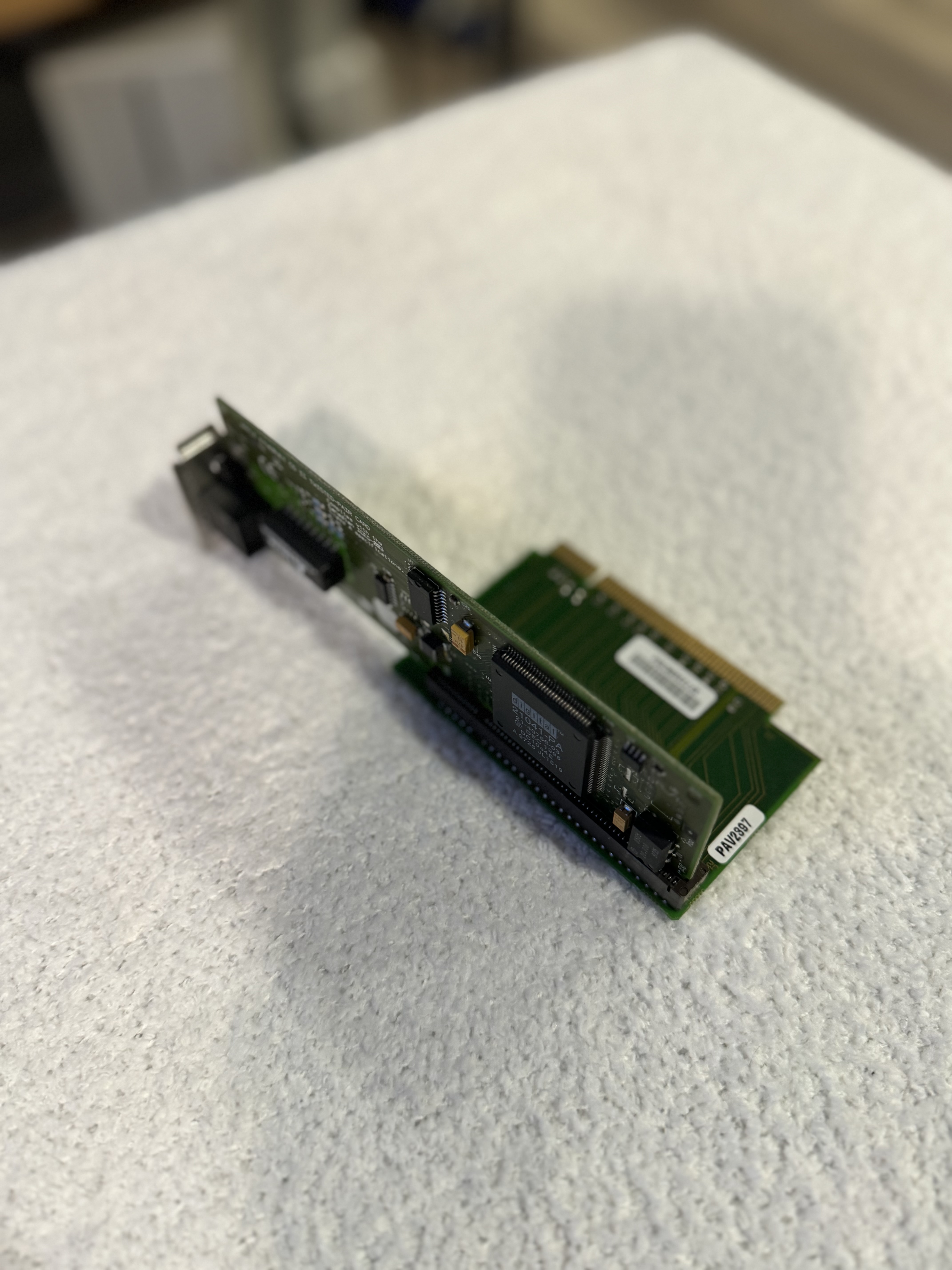

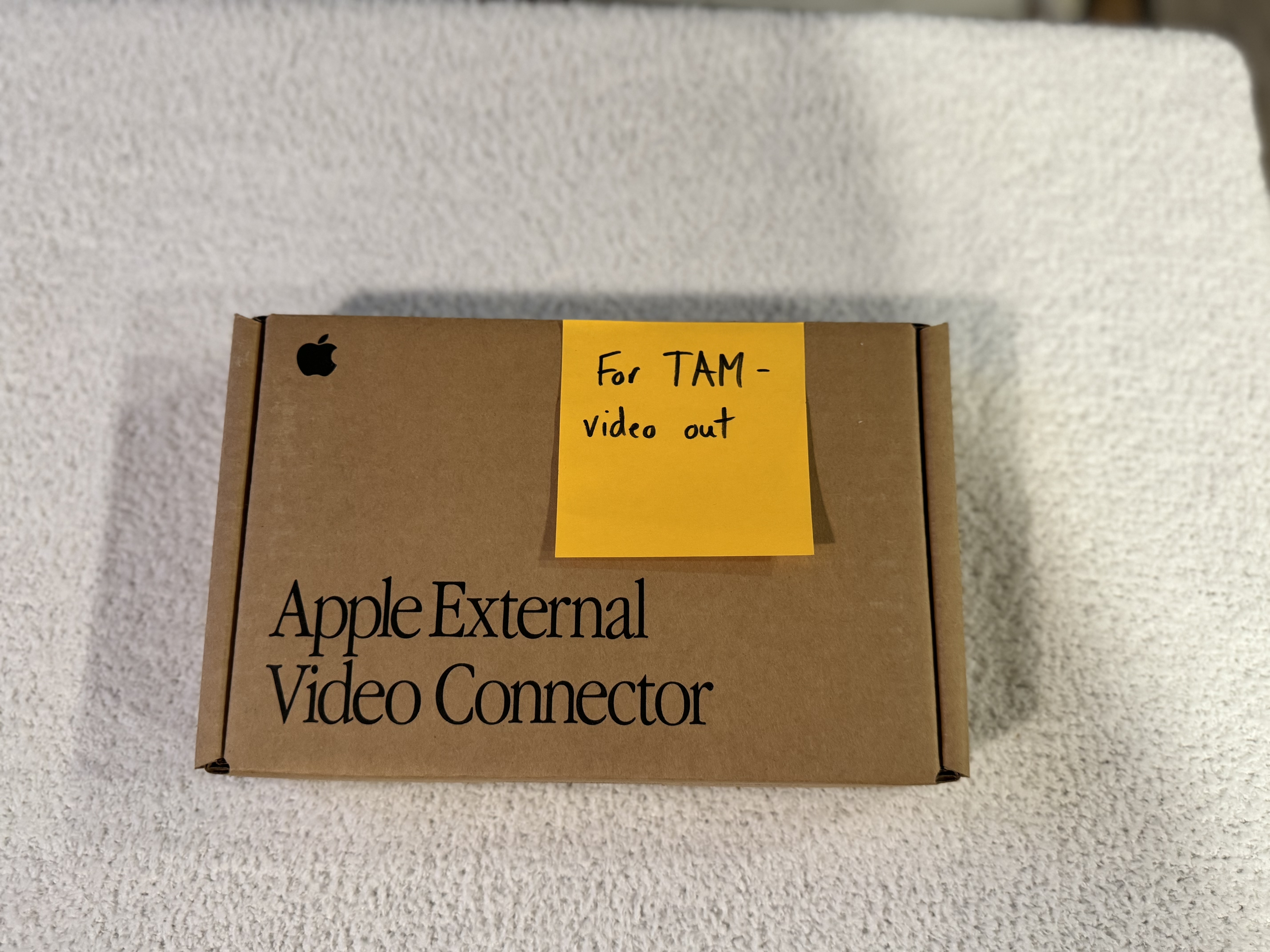

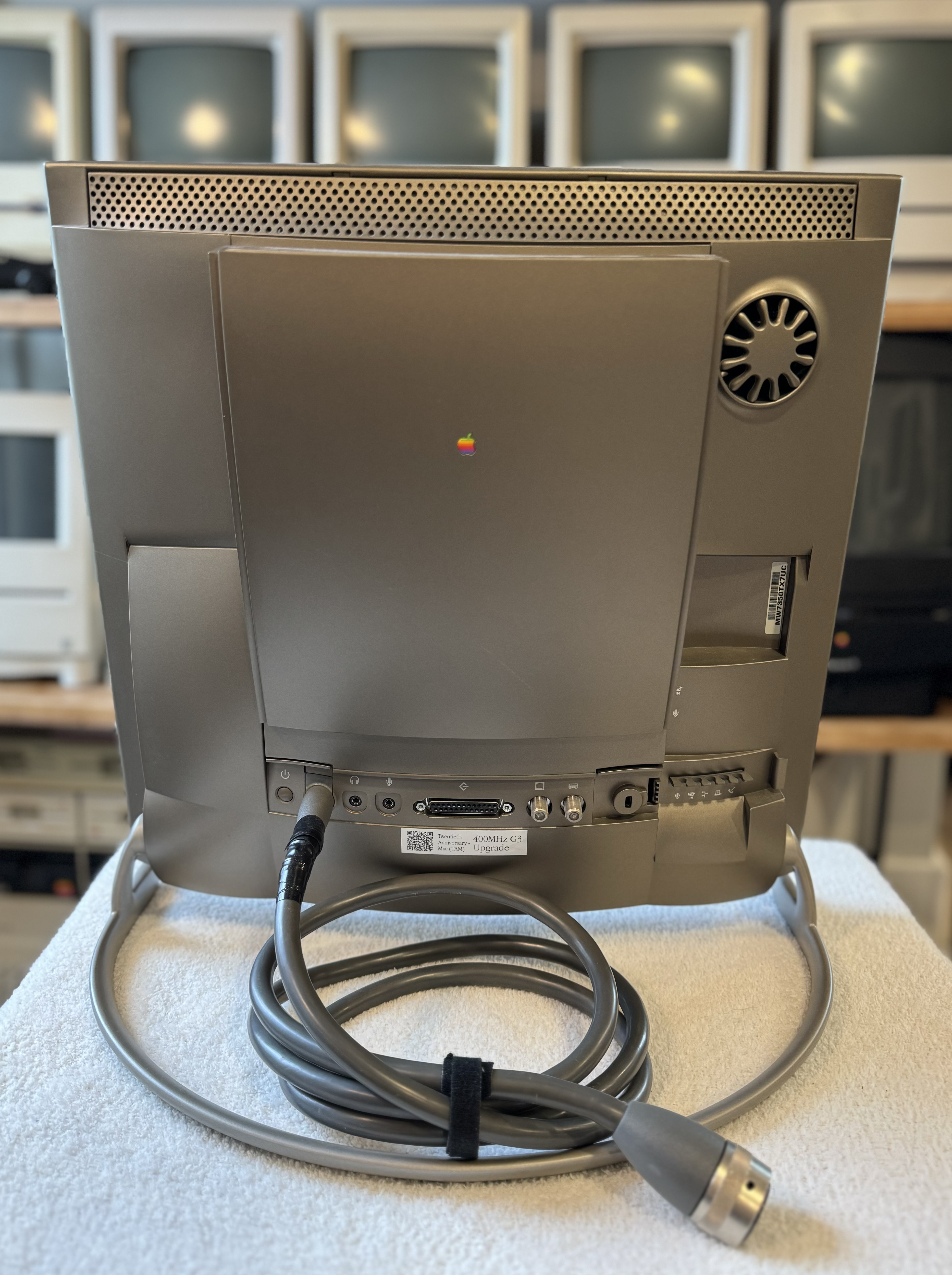

Have original book which has some damage to the black cover. Also have fat and slim backs. Have Comm slot riser with Ethernet card. Also have Apple External Video Connector which allows for connecting to an external monitor. Most likely will run with fat back with

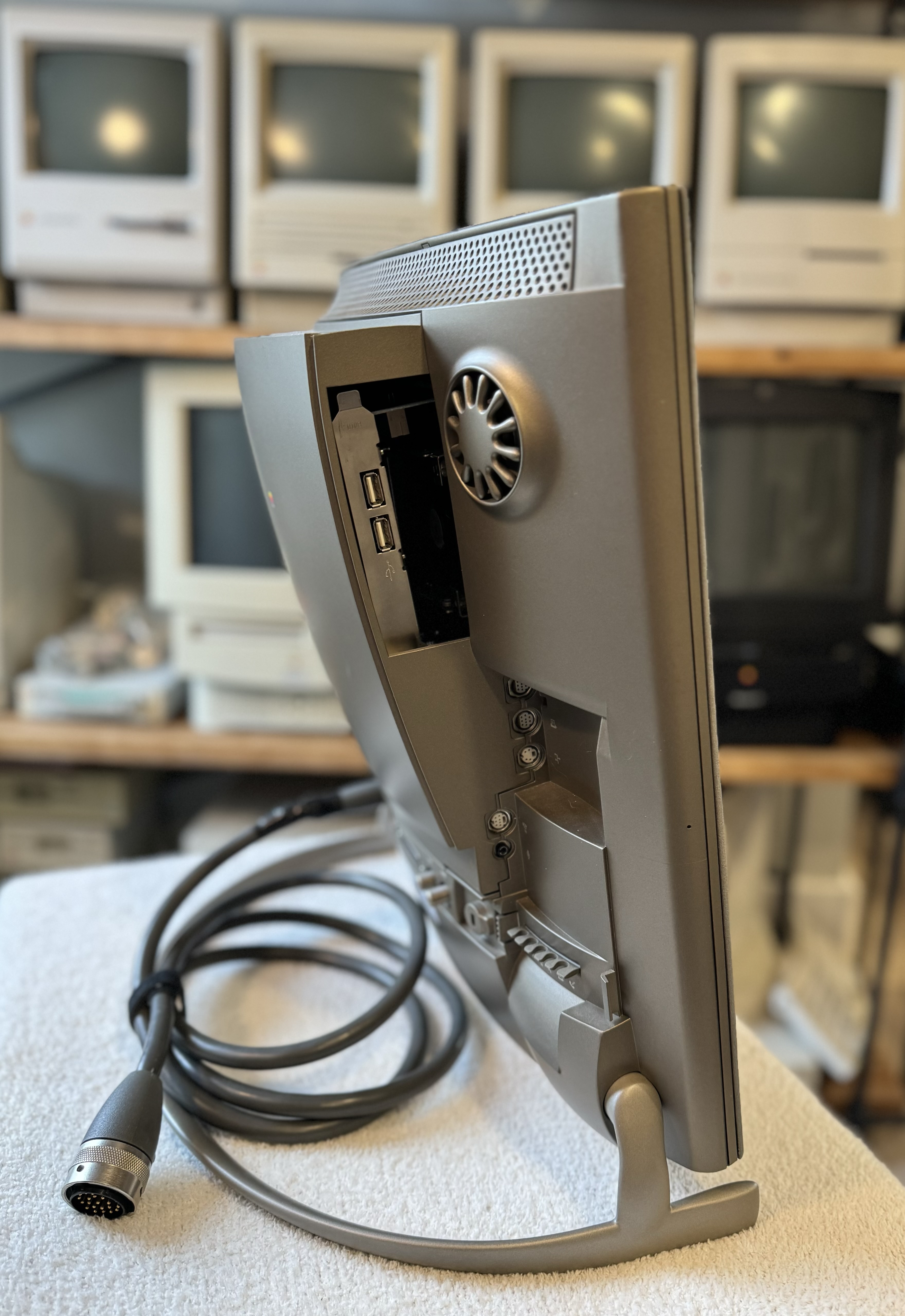

Apple Comm Slot II Ethernet card added. Took Crescendo G3 400MHz upgrade from 6500, also added PCI riser from 6400 and USB PCI card from 6500. The problem with the PCI riser is that one slot is blocked by the HD and the other is unsupported without a plate for the fat back.
Archival Status: Fully Operational.
Specifications
Technical Blueprint
Ref: M3459
Processor
PowerPC 603e 250MHz PowerPC G3 400MHz
Memory

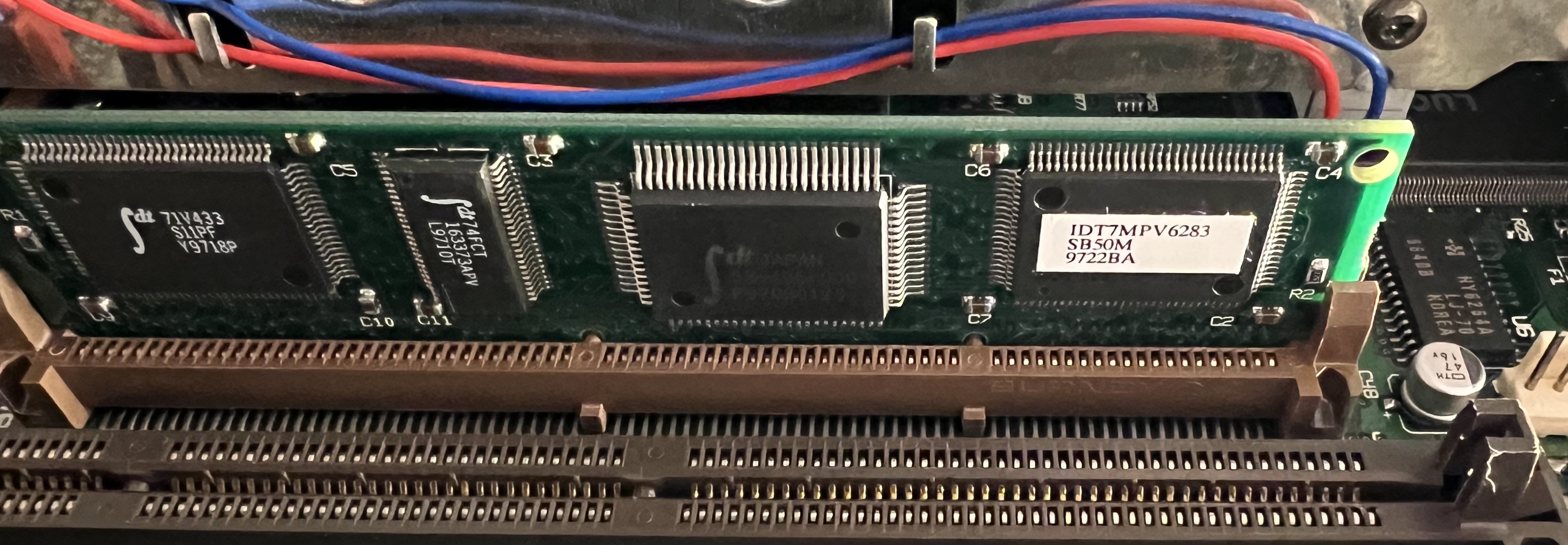

96MB 168-pin DIMM 60ns
Storage

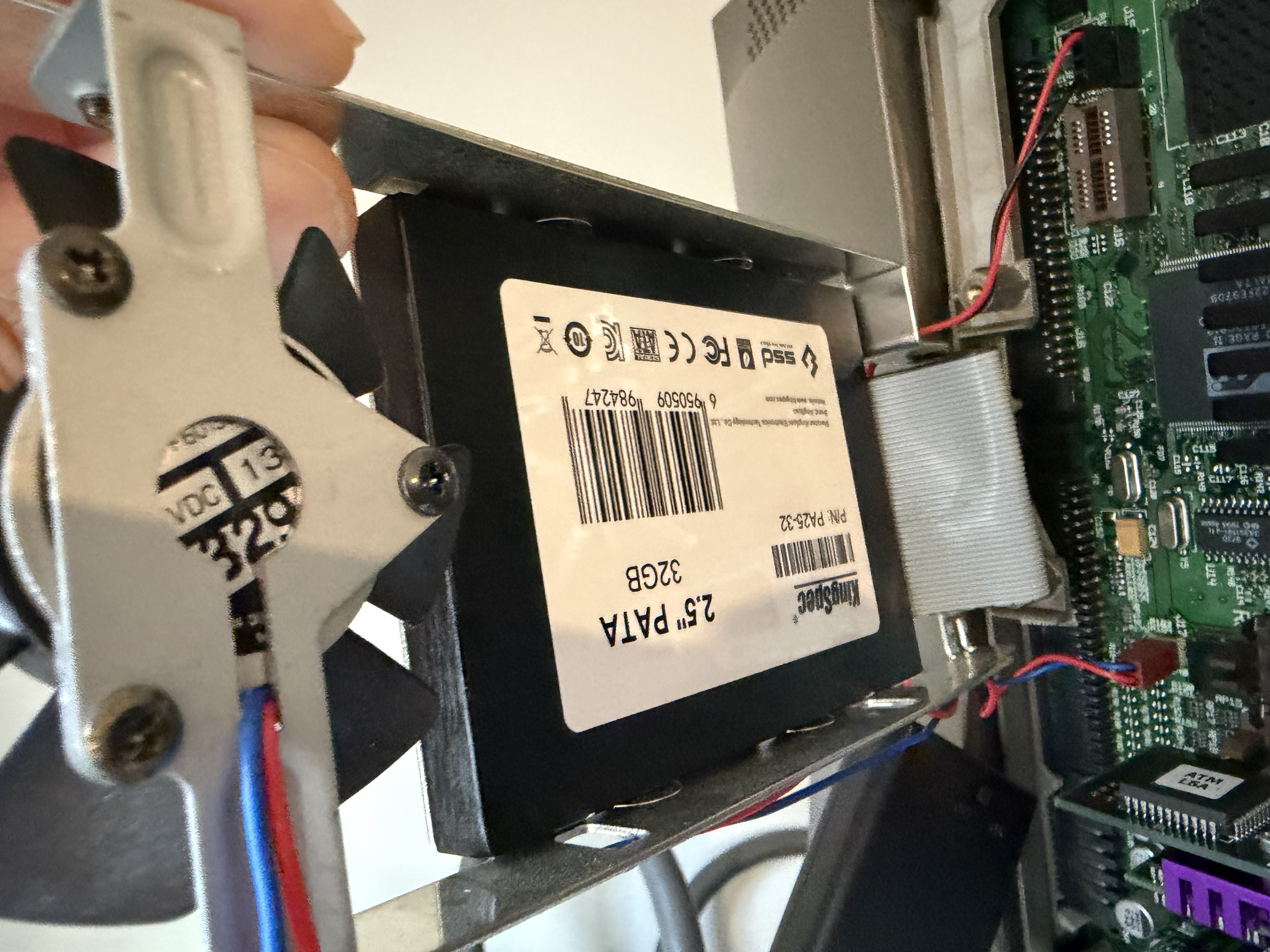

32GB IDE SSD, SCSI CD-ROM
Graphics
800x600, ATI 3D Rage II
Operating System

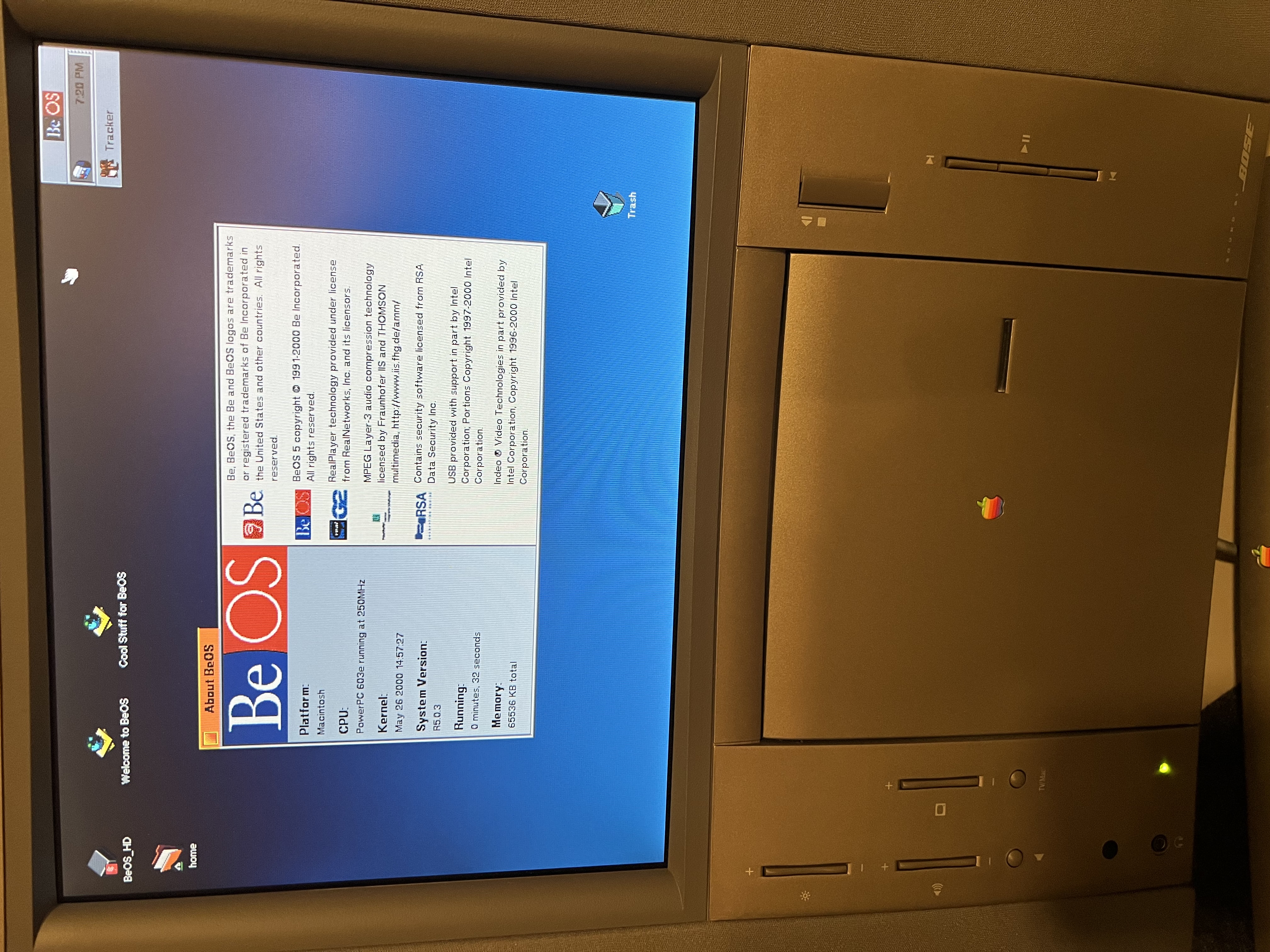

Mac OS 9.1, Mac OS 8.6, macOS 7.6.1, BeOS 5.0.3
Hardware Notes
PRAM battery removed
Gallery
Detailed Observations
Restoration Log
Work Done
Every repair, recap, and restoration performed on this machine — documented as the work was completed.

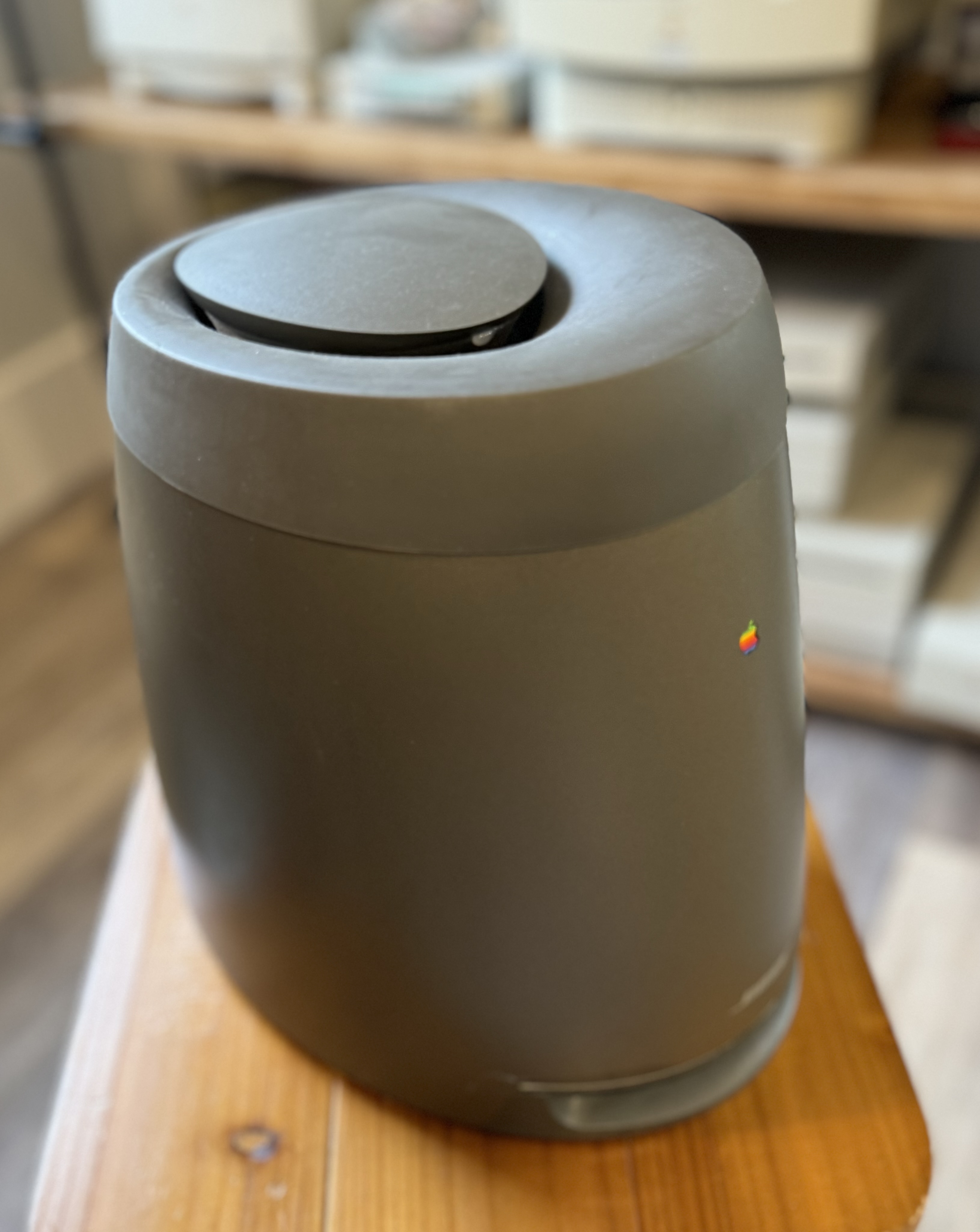

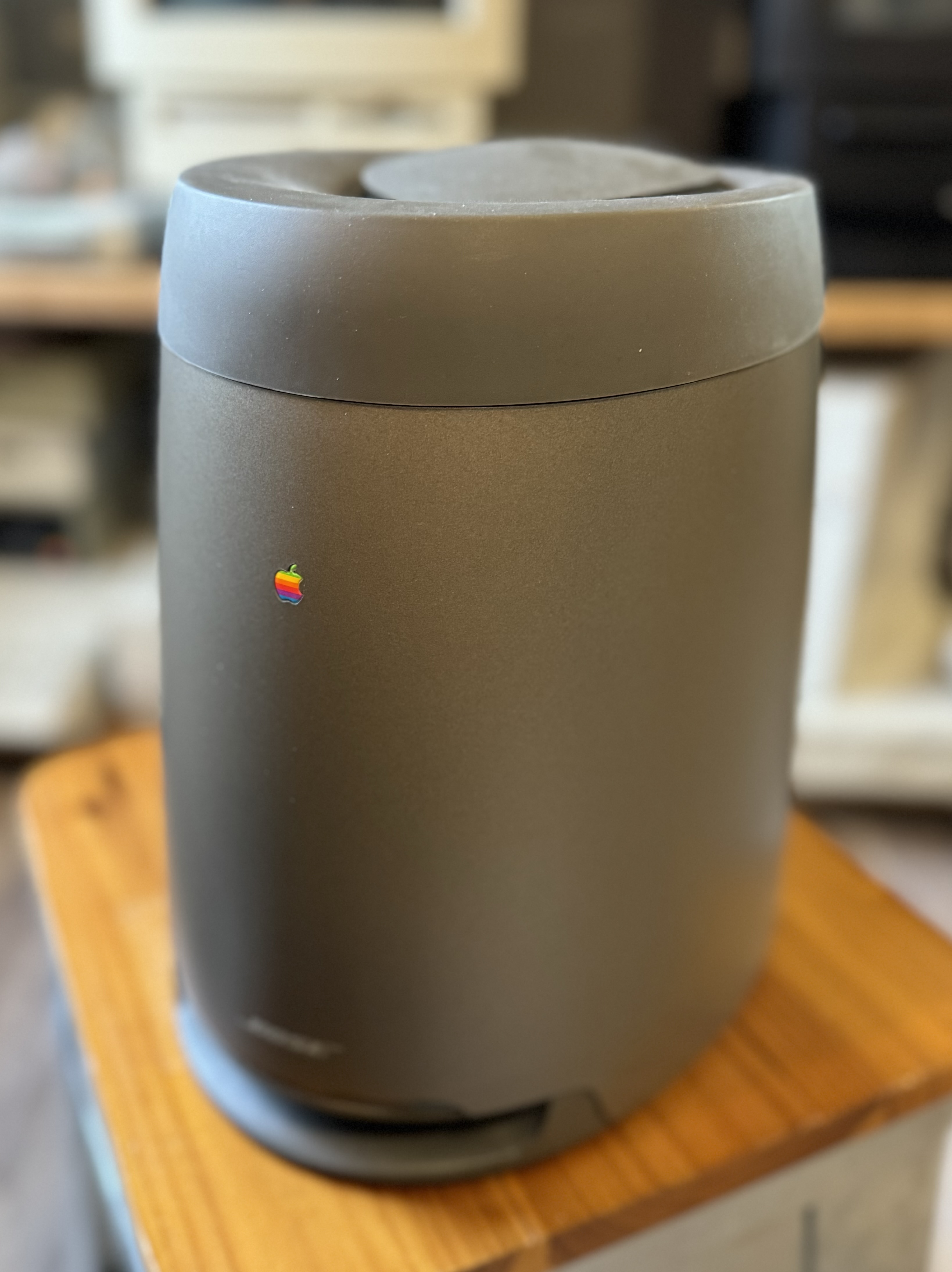

Reconditioned Bass Module
Opened up Bose bass module and tinned the connector to prevent the audio issues. Also replaced fan inside unit.
